1-2199230-5

1-2199230-5

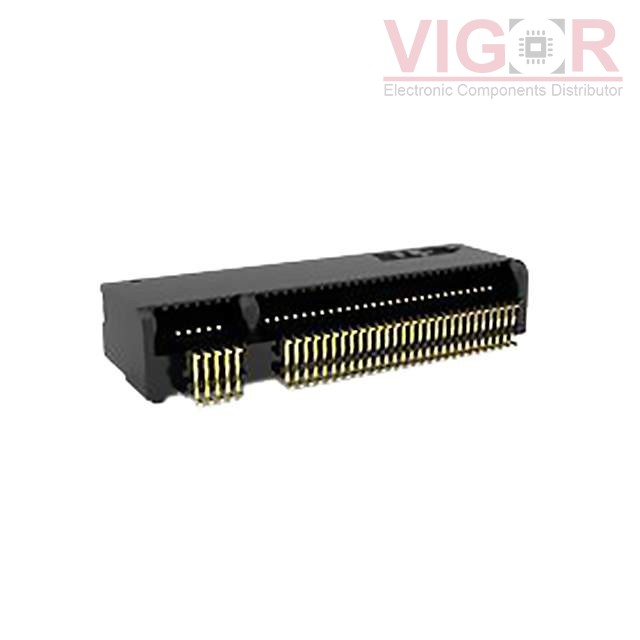

Image is for reference,
please contact us to get the real picture

Part No :

1-2199230-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN EDGE DUAL FMALE 67POS 0.020
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
1-2199230-5 PDF
Availability
13075 pieces
Unit Price
$1.28000

Current price of 1-2199230-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-2199230-5 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Card Type:M.2 (NGFF) Mini Card
Gender:Female
Number of Positions/Bay/Row:-
Number of Positions:67
Card Thickness:-
Number of Rows:2
Pitch:0.020" (0.50mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-40°C ~ 80°C
