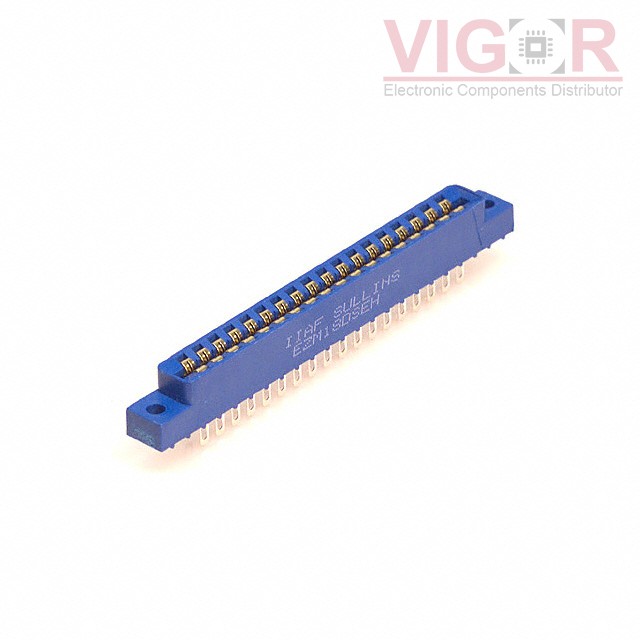

EZM18DSEH

EZM18DSEH

Image is for reference,
please contact us to get the real picture

Part No :

EZM18DSEH

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 36POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
EZM18DSEH PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of EZM18DSEH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EZM18DSEH Specifications
Type Description
Series:-
Package:Tray
Part Status:Obsolete
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:18
Number of Positions:36
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Panel Mount
Termination:Solder Eyelet(s)
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Full Bellows
Color:Blue
Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 125°C
