1-583859-5

1-583859-5

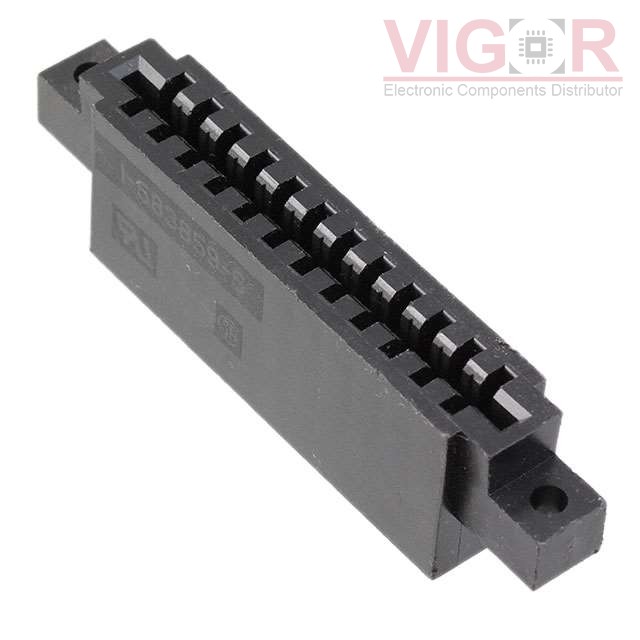

Image is for reference,
please contact us to get the real picture

Part No :

1-583859-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN CARDEDGE HSG 24POS .156 BLK
Catalog
Card Edge Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
1-583859-5 PDF
Availability
0 pieces
Unit Price
$3.52350

Current price of 1-583859-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-583859-5 Specifications
Type Description
Series:TWIN LEAF
Package:Bulk
Part Status:Active
Card Type:Non Specified - Dual Edge
Number of Positions:24
Card Thickness:0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Pitch:0.156" (3.96mm)
Features:Flange
Mounting Type:Panel Mount
Color:Black
Flange Feature:Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Material - Insulation:Polyester Thermoplastic, Glass Filled
