09156123001

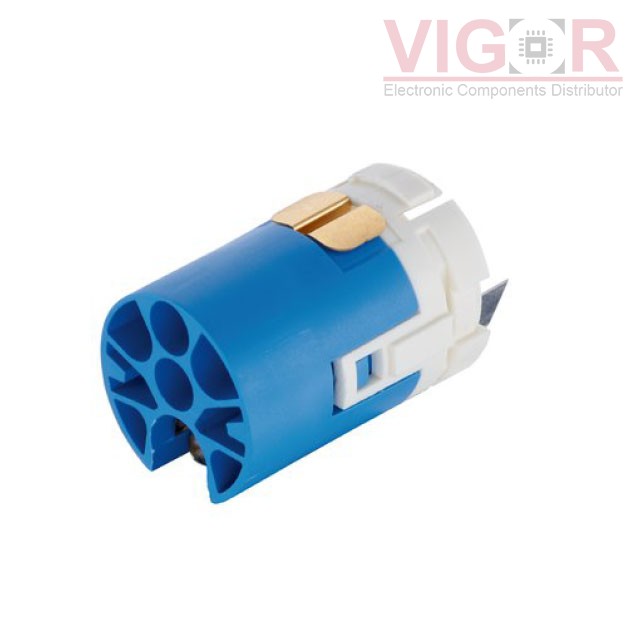

Image is for reference,
please contact us to get the real picture

Part No :: 09156123001

Manufacturer: HARTING

Description: CONN INSERT MALE 12POS

Catalog: Circular Connectors - Housings

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: 09156123001 PDF

Availability: 15 pieces

Unit Price: ~~$20.79000~~

Current price of 09156123001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09156123001 Specifications

Type	Description
Series:	Han® M23 Hybrid
Package:	Bulk
Part Status:	Active
Connector Type:	Insert
Type:	For Male Pins
Number of Positions:	12 (4 + 4 Data + 3 Power + PE)
Shell Size - Insert:	M23-12
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	-
Mounting Type:	-
Mounting Feature:	-
Fastening Type:	-
Orientation:	Keyed
Shell Material:	-
Shell Finish:	-
Housing Color:	Blue
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Unshielded
