JL05-6A28-21PC-F0-R

JL05-6A28-21PC-F0-R

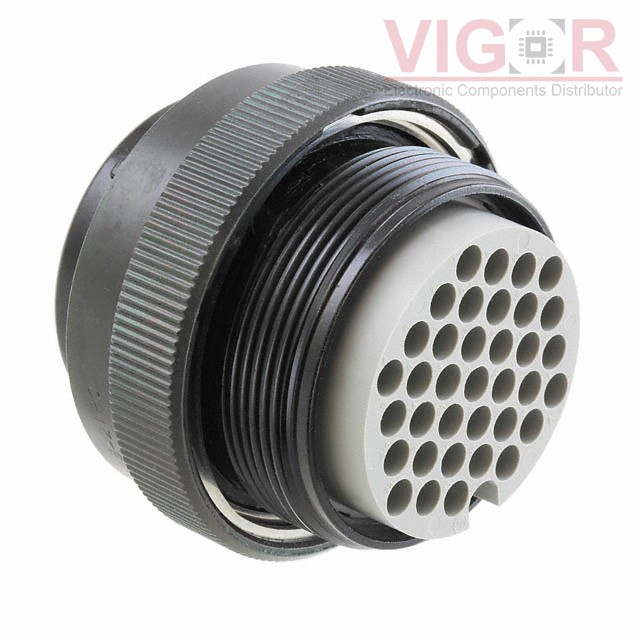

Image is for reference,
please contact us to get the real picture

Part No :

JL05-6A28-21PC-F0-R

Manufacturer
JAE Electronics
Description
CONN PLG HSG MALE 37POS INLINE
Catalog
Circular Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
JL05-6A28-21PC-F0-R PDF
Availability
0 pieces
Unit Price
$55.89625

Current price of JL05-6A28-21PC-F0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL05-6A28-21PC-F0-R Specifications
Type Description
Series:JL05
Package:Bulk
Part Status:Active
Connector Type:Plug Housing
Type:For Male Pins
Number of Positions:37 (36 + PE)
Shell Size - Insert:28-21
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:16
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Bayonet Lock
Orientation:N (Normal)
Shell Material:Aluminum
Shell Finish:Zinc
Housing Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Coupling Nut
Shielding:Unshielded
