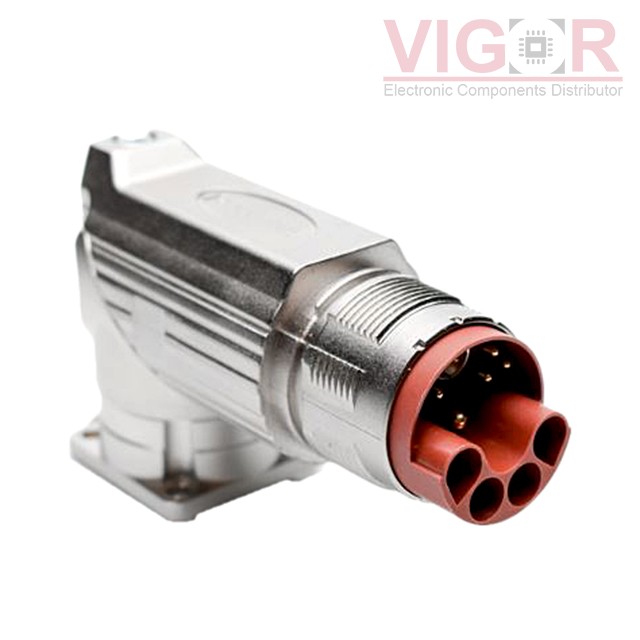

MB5RJN15H01

Image is for reference,
please contact us to get the real picture

Part No :: MB5RJN15H01

Manufacturer: Tuchel / Amphenol

Description: CONN RCPT HSG MALE 12POS PNL RA

Catalog: Circular Connectors - Housings

Shipped from: HK warehouse

Expected Shipping Date: Aug 26 - Aug 30 2025

DataSheet: MB5RJN15H01 PDF

Availability: 15 pieces

Unit Price: ~~$43.42000~~

Current price of MB5RJN15H01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB5RJN15H01 Specifications

Type	Description
Series:	MotionGrade™ M23 Hybrid Series, Checkmate™ Quick Locking
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle Housing
Type:	For Male Pins
Number of Positions:	12 (6 + 4 Power + 1 Quadrax + PE)
Shell Size - Insert:	M23-12
Shell Size, MIL:	-
Contact Type:	Crimp
Contact Size:	1.0mm (6), 2.0mm Power (5), 0.6mm Quadrax (1)
Mounting Type:	Panel Mount, Right Angle
Mounting Feature:	Flange
Fastening Type:	Push-Twist
Orientation:	Keyed
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Housing Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Backshell
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AE83376W2212N-LC

AE8 12C 12#12 PIN PLUG

HOT

AE208E14F15S-LC

CONN RCPT HSG FMALE 15POS PNL MT

HOT

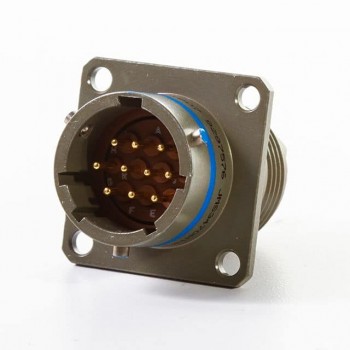

AE774W16-8S-LC
