MB3ZSN8HS1

MB3ZSN8HS1

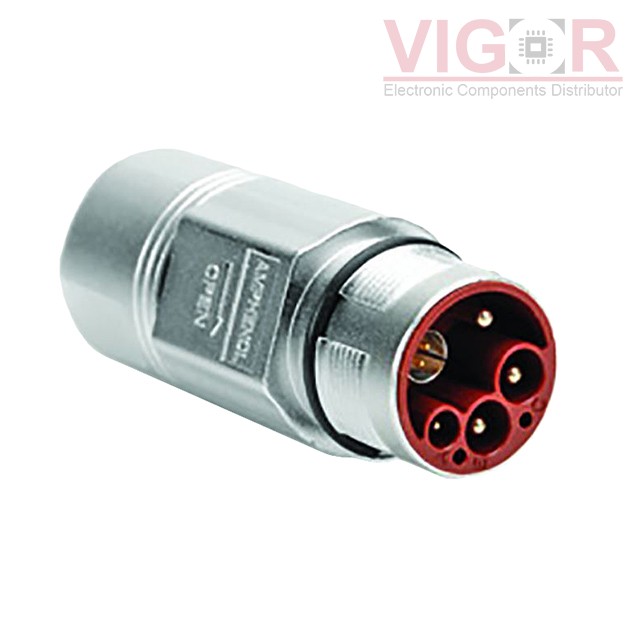

Image is for reference,
please contact us to get the real picture

Part No :

MB3ZSN8HS1

Manufacturer
Tuchel / Amphenol
Description
CONN RCPT HSG MALE 5POS INLINE
Catalog
Circular Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
MB3ZSN8HS1 PDF
Availability
25 pieces
Unit Price
$35.26000

Current price of MB3ZSN8HS1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB3ZSN8HS1 Specifications
Type Description
Series:MotionGrade™ M23 Hybrid Series, Threaded
Package:Bulk
Part Status:Active
Connector Type:Receptacle Housing
Type:For Male Pins
Number of Positions:5 (1 + 2 Power + 1 Quadrax + PE)
Shell Size - Insert:M23-5
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:1.0mm (1), 2.0mm Power (3), 0.7mm Quadrax (1)
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Threaded
Orientation:Keyed
Shell Material:Zinc Die Cast
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell
Shielding:Shielded
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AE556L14S-7S-LC

AE556L14S-7S-LC

CONN PLG HSG FMALE 3POS INLINE
HOT AE83395W1808N-LC

AE83395W1808N-LC

AE8 8C 8#12 SKT PLUG

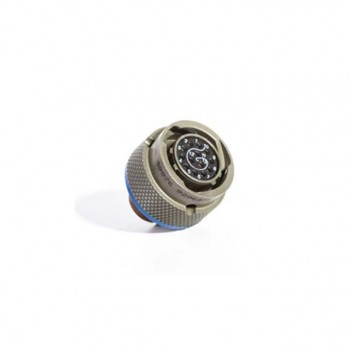

HOT MS27473T14F18P-LC
