HD36-24-16PN

HD36-24-16PN

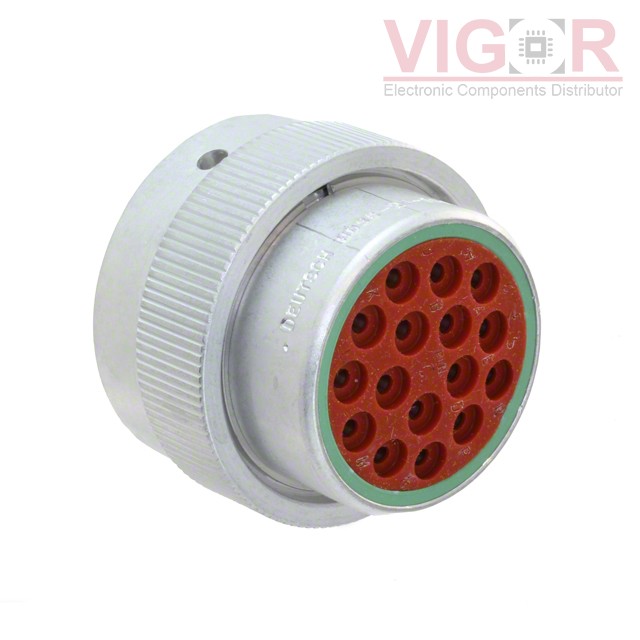

Image is for reference,
please contact us to get the real picture

Part No :

HD36-24-16PN

Manufacturer
Description
CONN PLUG HSG MALE 16POS INLINE
Catalog
Circular Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
HD36-24-16PN PDF
Availability
46 pieces
Unit Price
$18.76000

Current price of HD36-24-16PN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HD36-24-16PN Specifications
Type Description
Series:HD30
Package:Bulk
Part Status:Active
Connector Type:Plug Housing
Type:For Male Pins
Number of Positions:16
Shell Size - Insert:24-16
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:12
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Bayonet Lock
Orientation:Keyed
Shell Material:Aluminum
Shell Finish:-
Housing Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Coupling Nut
Shielding:Unshielded
