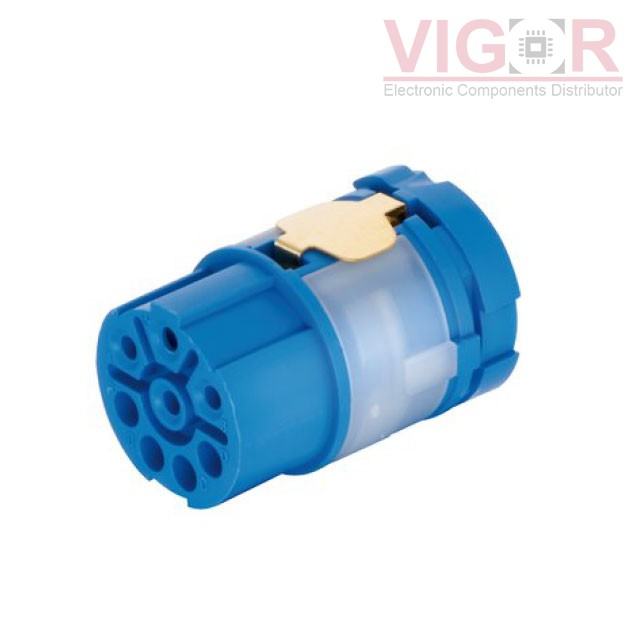

Image is for reference,
please contact us to get the real picture

Part No :

09156083101

Manufacturer
HARTING
Description
CONN INSERT FEMALE 8POS
Catalog
Circular Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
09156083101 PDF
Availability
37 pieces
Unit Price
$11.86000

Current price of 09156083101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09156083101 Specifications
Type Description
Series:Han® M23 Power
Package:Bulk
Part Status:Active
Connector Type:Insert
Type:For Female Sockets
Number of Positions:8 (4 + 3 Power + PE)
Shell Size - Insert:M23-8
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:-
Mounting Type:-
Mounting Feature:-
Fastening Type:-
Orientation:Keyed
Shell Material:-
Shell Finish:-
Housing Color:Blue
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Unshielded
