DBC30H-10-5PN [V001]

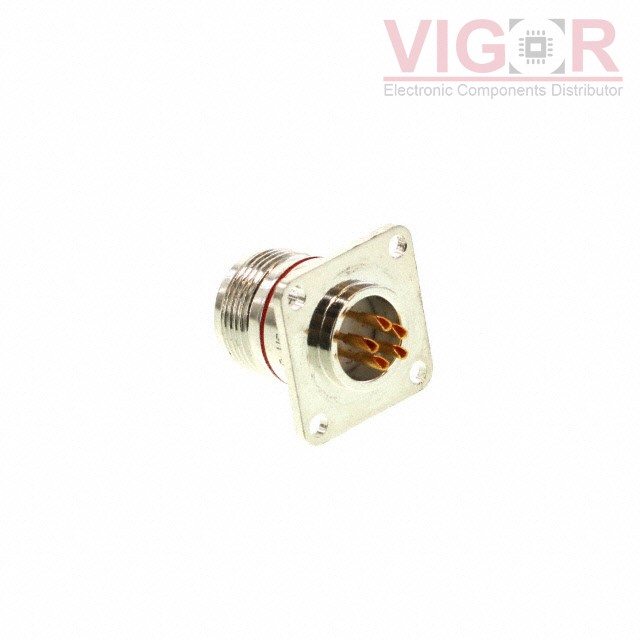

Image is for reference,
please contact us to get the real picture

Part No :: DBC30H-10-5PN [V001]

Manufacturer: TE Connectivity DEUTSCH Connectors

Description: CONN RCPT MALE 5P GOLD SLDR CUP

Catalog: Circular Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: DBC30H-10-5PN [V001] PDF

Availability: 17 pieces

Unit Price: ~~$99.99000~~

Current price of DBC30H-10-5PN [V001] is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DBC30H-10-5PN [V001] Specifications

Type	Description
Series:	MIL-DTL-83723 Series III, DBC30
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Male Pins
Number of Positions:	5 (Power)
Shell Size - Insert:	10-5
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Flange
Termination:	Solder Cup
Fastening Type:	Threaded
Orientation:	N (Normal)
Shell Material:	Carbon Steel
Shell Finish:	Tin
Contact Finish - Mating:	Gold
Color:	Red, Silver
Ingress Protection:	-
Material Flammability Rating:	-
Features:	Hermetically Sealed
Shielding:	Unshielded
Current Rating (Amps):	-
Voltage Rating:	600VAC, 850VDC
Cable Opening:	0.561" (14.25mm)
Operating Temperature:	-65°C ~ 150°C

Please confirm the specifications of the products when ordering.
