JL04HV-2E22-22PE-B-R

JL04HV-2E22-22PE-B-R

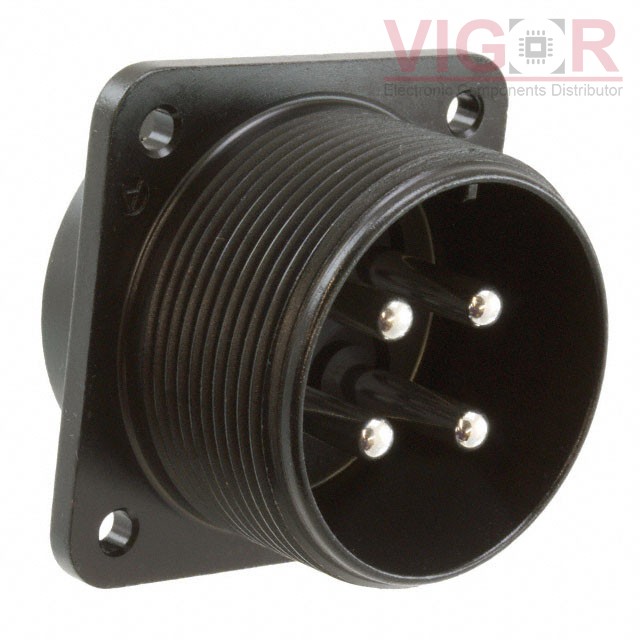

Image is for reference,
please contact us to get the real picture

Part No :

JL04HV-2E22-22PE-B-R

Manufacturer
JAE Electronics
Description
CONN RCPT MALE 4P SOLDER CUP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
JL04HV-2E22-22PE-B-R PDF
Availability
0 pieces
Unit Price
$28.63000

Current price of JL04HV-2E22-22PE-B-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL04HV-2E22-22PE-B-R Specifications
Type Description
Series:JL04HV
Package:Bulk
Part Status:Active
Connector Type:Receptacle, Male Pins
Number of Positions:4 (3 + PE)
Shell Size - Insert:22-22
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Flange
Termination:Solder Cup
Fastening Type:Threaded
Orientation:N (Normal)
Shell Material:Aluminum Alloy
Shell Finish:Zinc
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Ground
Shielding:-
Current Rating (Amps):46A
Voltage Rating:-
Cable Opening:1.299" (33.00mm)
Operating Temperature:-55°C ~ 125°C
