MS3470L20-16SX

MS3470L20-16SX

Image is for reference,
please contact us to get the real picture

Part No :

MS3470L20-16SX

Manufacturer
Amphenol Aerospace Operations
Description
CONN RCPT FMALE 16POS GOLD CRIMP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
MS3470L20-16SX PDF
Availability
0 pieces
Unit Price
$95.48000

Current price of MS3470L20-16SX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MS3470L20-16SX Specifications
Type Description
Series:Military, MIL-DTL-26482 Series II
Package:Bulk
Part Status:Active
Connector Type:Receptacle, Female Sockets
Number of Positions:16 (Power)
Shell Size - Insert:20-16
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Flange
Termination:Crimp
Fastening Type:Bayonet Lock
Orientation:X
Shell Material:Aluminum
Shell Finish:Electroless Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:Environment Resistant
Material Flammability Rating:-
Features:-
Shielding:Unshielded
Current Rating (Amps):-
Voltage Rating:-
Cable Opening:-
Operating Temperature:-65°C ~ 200°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PLB4G020010

PLB4G020010

CONN RCPT FMALE 10P SOLDER CUP
HOT FGG.0B.304.CYCD42Z

FGG.0B.304.CYCD42Z

CONN PLUG MALE 4POS GOLD CRIMP

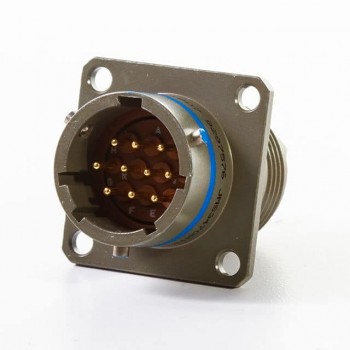

HOT AE775W14-9SY
