AE774W20-16SZ

AE774W20-16SZ

Image is for reference,
please contact us to get the real picture

Part No :

AE774W20-16SZ

Manufacturer
PEI-Genesis
Description
CONN RCPT FMALE 16POS CRIMP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AE774W20-16SZ PDF
Availability
0 pieces
Unit Price
$60.22000

Current price of AE774W20-16SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AE774W20-16SZ Specifications
Type Description
Series:MIL-DTL-26482 Series II
Package:Box
Part Status:Active
Connector Type:Receptacle, Female Socket
Number of Positions:16
Shell Size - Insert:20-16
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:Front Side Nut
Termination:Crimp
Fastening Type:Bayonet Lock
Orientation:Z
Shell Material:Aluminum
Shell Finish:Olive Drab Cadmium
Contact Finish - Mating:Gold
Color:Olive Drab
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:-
Shielding:Shielded
Current Rating (Amps):13A
Voltage Rating:1000VDC
Cable Opening:-
Operating Temperature:-55°C ~ 175°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MS24264R14B15PN

MS24264R14B15PN

CONN RCPT MALE 15POS GOLD CRIMP
HOT PT02A-14-15S

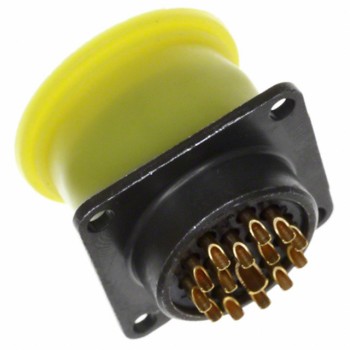

PT02A-14-15S

CONN RCPT FMALE 15P SOLDER CUP
HOT AE770W16-8PZ

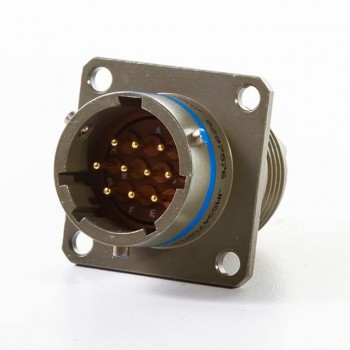

AE770W16-8PZ
