AE776L20-16SW

AE776L20-16SW

Image is for reference,
please contact us to get the real picture

Part No :

AE776L20-16SW

Manufacturer
PEI-Genesis
Description
CONN PLUG FMALE 16POS CRIMP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
AE776L20-16SW PDF
Availability
0 pieces
Unit Price
$49.96000

Current price of AE776L20-16SW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AE776L20-16SW Specifications
Type Description
Series:MIL-DTL-26482 Series II
Package:Box
Part Status:Active
Connector Type:Plug, Female Sockets
Number of Positions:16
Shell Size - Insert:20-16
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Crimp
Fastening Type:Bayonet Lock
Orientation:W
Shell Material:Aluminum
Shell Finish:Electroless Nickel
Contact Finish - Mating:Gold
Color:-
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:-
Shielding:Shielded
Current Rating (Amps):13A
Voltage Rating:1000VDC
Cable Opening:-
Operating Temperature:-55°C ~ 200°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

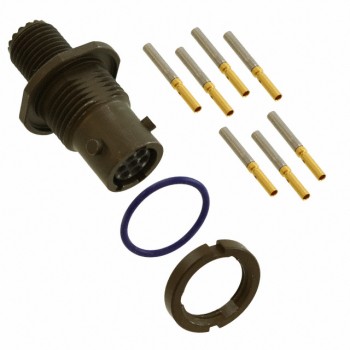

HOT MKJ3B7W6-7SN

MKJ3B7W6-7SN

CONN RCPT FMALE 7POS GOLD CRIMP

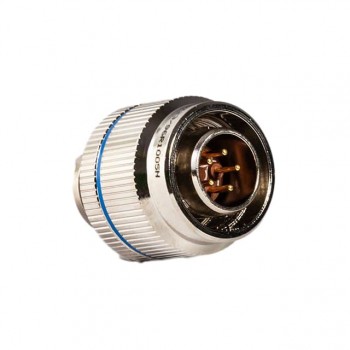

HOT AE83382R14156

AE83382R14156

CONN RCPT FMALE 15POS CRIMP

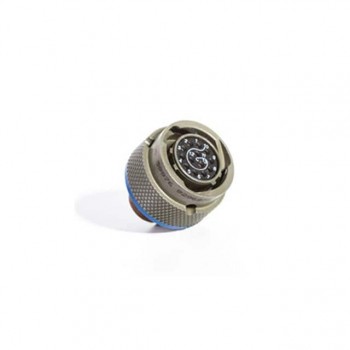

HOT AE273T12B4A
