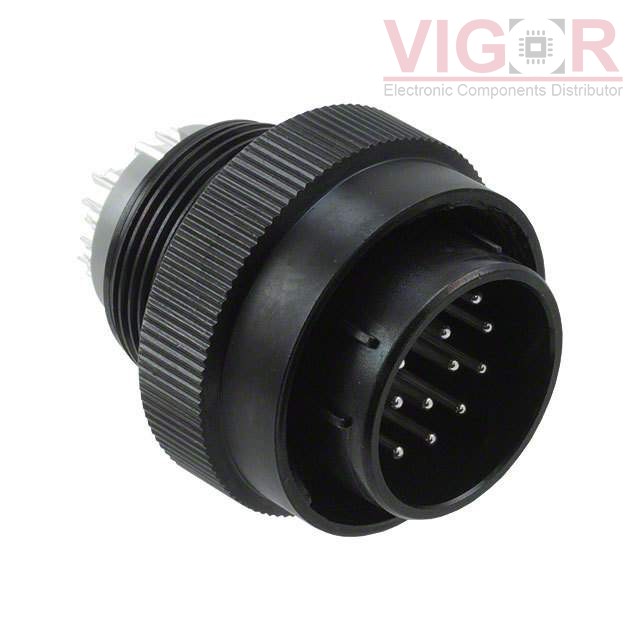

JL05-6A20-29P-R

JL05-6A20-29P-R

Image is for reference,
please contact us to get the real picture

Part No :

JL05-6A20-29P-R

Manufacturer
JAE Electronics
Description
CONN PLUG MALE 17POS SILV SOLDER
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
JL05-6A20-29P-R PDF
Availability
37 pieces
Unit Price
$52.23000

Current price of JL05-6A20-29P-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL05-6A20-29P-R Specifications
Type Description
Series:JL05
Package:Bulk
Part Status:Active
Connector Type:Plug, Male Pins
Number of Positions:17 (16 + PE)
Shell Size - Insert:20-29
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder
Fastening Type:Bayonet Lock
Orientation:N (Normal)
Shell Material:Aluminum Alloy
Shell Finish:Zinc
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Coupling Nut, Ground Lug
Shielding:-
Current Rating (Amps):13A
Voltage Rating:-
Cable Opening:-
Operating Temperature:-55°C ~ 125°C
