Current price of UTGX6JC14E12P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | UTGX |
Package: | Bag |
Part Status: | Active |
Connector Type: | Plug, Male Pins |
Number of Positions: | 12 (Power) |
Shell Size - Insert: | 14-12 |
Shell Size, MIL: | - |
Mounting Type: | Free Hanging (In-Line) |
Mounting Feature: | - |
Termination: | Solder Cup |
Fastening Type: | Bayonet Lock |
Orientation: | N (Normal) |
Shell Material: | Polyamide (PA), Nylon |
Shell Finish: | - |
Contact Finish - Mating: | - |
Color: | Black |
Ingress Protection: | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
Material Flammability Rating: | UL94 V-0 |
Features: | Backshell, Coupling Nut, UV Resistant |
Shielding: | Unshielded |
Current Rating (Amps): | 5A, 10A |
Voltage Rating: | 250V, 600V |
Cable Opening: | 0.276" ~ 0.551" (7.00mm ~ 14.00mm) |
Operating Temperature: | -40°C ~ 105°C |
KW DSLP31.CC-GXHX-4J8K-Z444-60-R18
OSTUNE E1608 AND E3030

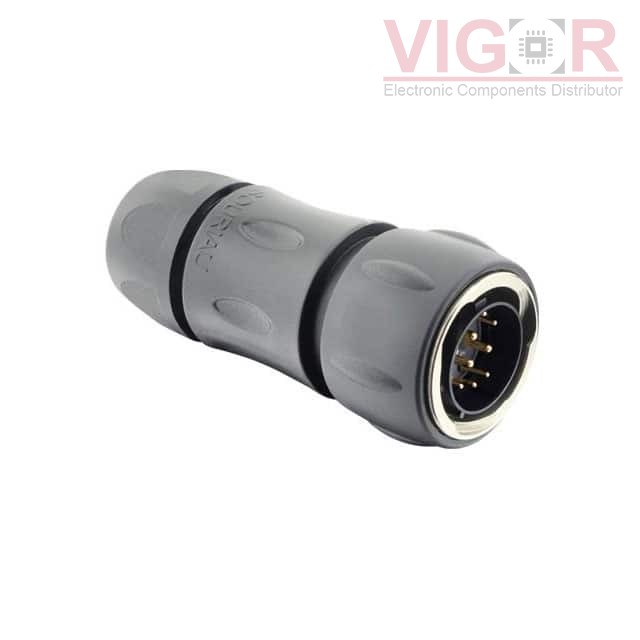

CONN PLUG MALE 12POS SOLDER CUP
