JB5CS04FM00N

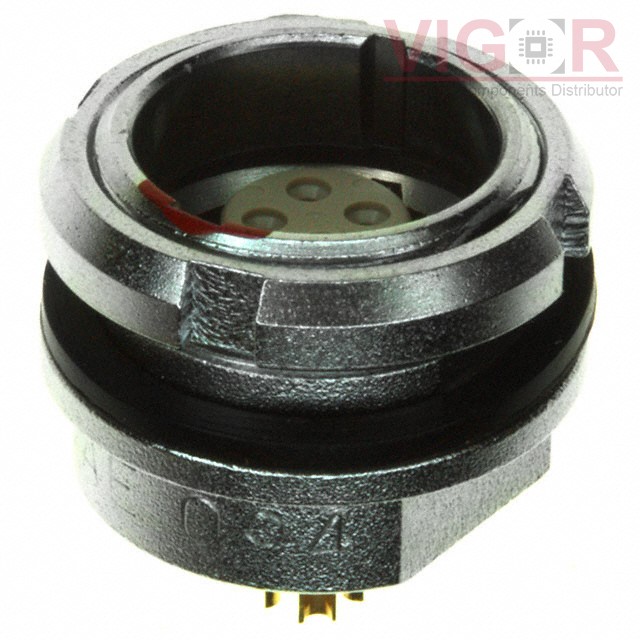

Image is for reference,
please contact us to get the real picture

Part No :: JB5CS04FM00N

Manufacturer: JAE Electronics

Description: CONN RCPT FMALE 4POS SOLDER CUP

Catalog: Circular Connectors

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: JB5CS04FM00N PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of JB5CS04FM00N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JB5CS04FM00N Specifications

Type	Description
Series:	JB5
Package:	Tray
Part Status:	Obsolete
Connector Type:	Receptacle, Female Sockets
Number of Positions:	4
Shell Size - Insert:	S
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Bulkhead - Front Side Nut
Termination:	Solder Cup
Fastening Type:	Push-Pull
Orientation:	N (Normal)
Shell Material:	Copper Alloy
Shell Finish:	Chromium
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP68 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Dust Cap
Shielding:	Shielded
Current Rating (Amps):	3A
Voltage Rating:	320VAC
Cable Opening:	-
Operating Temperature:	-55°C ~ 85°C
