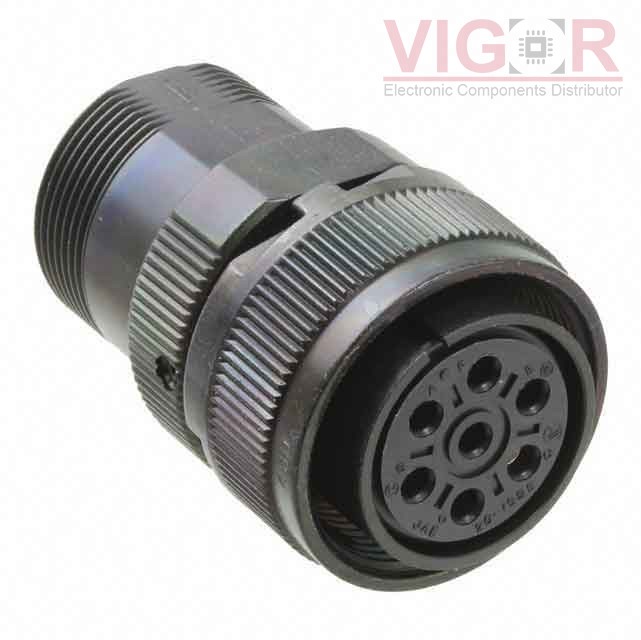

JL04V-6A20-15SE-EB-R

JL04V-6A20-15SE-EB-R

Image is for reference,
please contact us to get the real picture

Part No :

JL04V-6A20-15SE-EB-R

Manufacturer
JAE Electronics
Description
CONN PLUG FMALE 7P SOLDER CUP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
JL04V-6A20-15SE-EB-R PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JL04V-6A20-15SE-EB-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL04V-6A20-15SE-EB-R Specifications
Type Description
Series:JL04V
Package:Bulk
Part Status:Obsolete
Connector Type:Plug, Female Sockets
Number of Positions:7 (6 + PE)
Shell Size - Insert:20-15
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:N (Normal)
Shell Material:Aluminum Alloy
Shell Finish:Zinc
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell, Coupling Nut, Ground Lug
Shielding:-
Current Rating (Amps):23A
Voltage Rating:-
Cable Opening:-
Operating Temperature:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT JBXFD1G04MCSDSR

JBXFD1G04MCSDSR

CONN PLUG MALE 4POS GOLD CRIMP

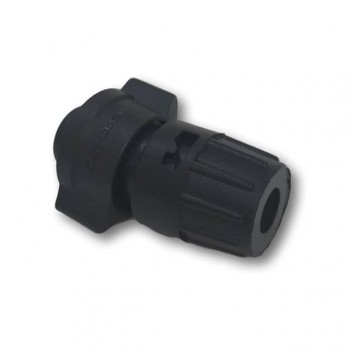

HOT W6282-3PG-P-315
