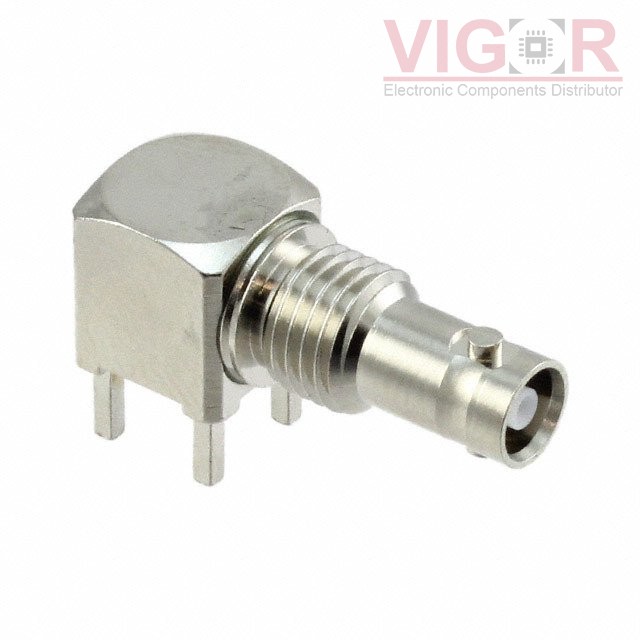

HDBNC-J-P-GN-RA-BH2

HDBNC-J-P-GN-RA-BH2

Image is for reference,
please contact us to get the real picture

Part No :

HDBNC-J-P-GN-RA-BH2

Manufacturer
Samtec, Inc.
Description
CONN HDBNC JACK R/A 75 OHM PCB
Catalog
Coaxial Connectors (RF)
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
HDBNC-J-P-GN-RA-BH2 PDF
Availability
325 pieces
Unit Price
$8.10000

Current price of HDBNC-J-P-GN-RA-BH2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HDBNC-J-P-GN-RA-BH2 Specifications
Type Description
Series:TRUE75™ HDBNC
Package:Bulk
Part Status:Active
Connector Style:BNC, HD
Connector Type:Jack, Female Socket
Contact Termination:Solder
Shield Termination:Solder
Impedance:75Ohm
Mounting Type:Panel Mount, Through Hole, Right Angle
Mounting Feature:Bulkhead - Front Side Nut
Cable Group:-
Fastening Type:Bayonet Lock
Frequency - Max:6 GHz
Number of Ports:1
Features:12G-SDI
Housing Color:Silver
Ingress Protection:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 031-70530

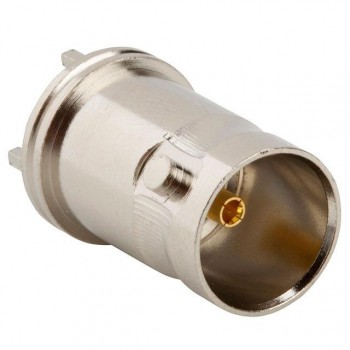

031-70530

CONN BNC RCPT STR 75 OHM PCB
HOT 8-331350-0

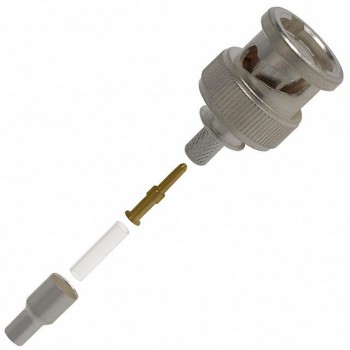

8-331350-0

CONN BNC PLUG STR 50 OHM PUSH
HOT M39012/56-3109

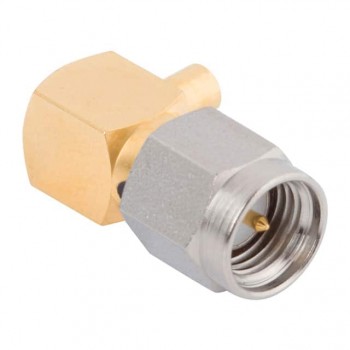

M39012/56-3109
