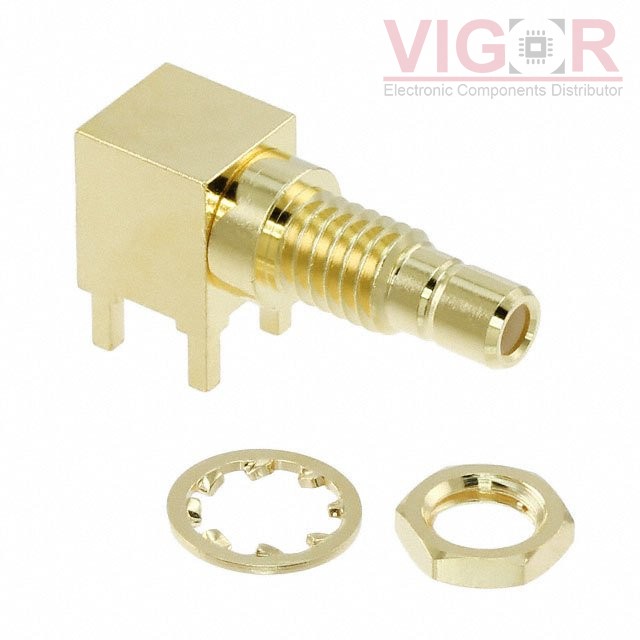

SMB5-J-P-H-RA-TH1

Image is for reference,
please contact us to get the real picture

Part No :: SMB5-J-P-H-RA-TH1

Manufacturer: Samtec, Inc.

Description: CONN SMB JACK R/A 50 OHM SOLDER

Catalog: Coaxial Connectors (RF)

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SMB5-J-P-H-RA-TH1 PDF

Availability: 171 pieces

Unit Price: ~~$10.55000~~

Current price of SMB5-J-P-H-RA-TH1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMB5-J-P-H-RA-TH1 Specifications

Type	Description
Series:	SMB5
Package:	Tray
Part Status:	Active
Connector Style:	SMB
Connector Type:	Jack, Male Pin
Contact Termination:	Solder
Shield Termination:	Solder
Impedance:	50Ohm
Mounting Type:	Panel Mount, Through Hole, Right Angle
Mounting Feature:	Bulkhead - Front Side Nut
Cable Group:	-
Fastening Type:	Snap-On
Frequency - Max:	4 GHz
Number of Ports:	1
Features:	-
Housing Color:	Gold
Ingress Protection:	-

Please confirm the specifications of the products when ordering.
