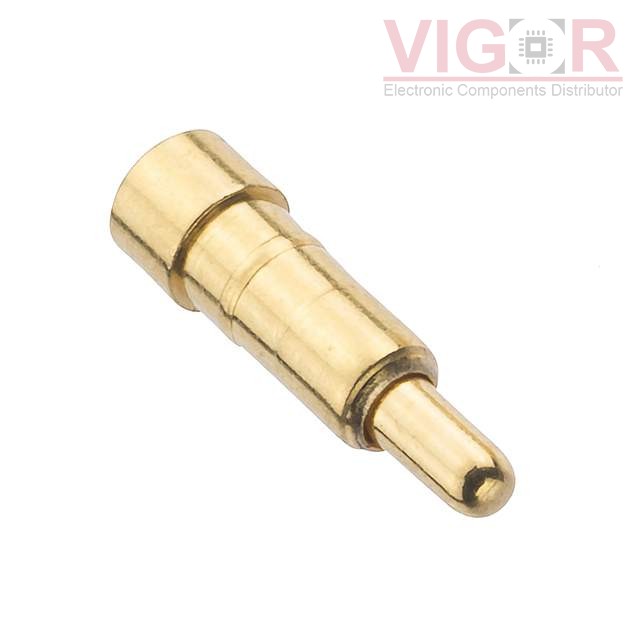

P70-1100045R

P70-1100045R

Image is for reference,
please contact us to get the real picture

Part No :

P70-1100045R

Manufacturer
Harwin
Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
P70-1100045R PDF
Availability
3382 pieces
Unit Price
$0.66000

Current price of P70-1100045R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P70-1100045R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.209" (5.30mm)
Recommended Working Height:0.197" (5.00mm)
Minimum Working Height:0.185" (4.70mm)
Pad Layout Dimension:Circular - 0.079" (2.00mm)
Operating Force - Initial:-
Operating Force - Mid Compression:124.41gf
Plunger Size:0.035" (0.90mm) Dia
Features:-
Mating Cycles:10000
Contact Material:Brass
Contact Finish:Gold
Contact Finish Thickness:16.0µin (0.41µm)
