806-22-001-30-014191

806-22-001-30-014191

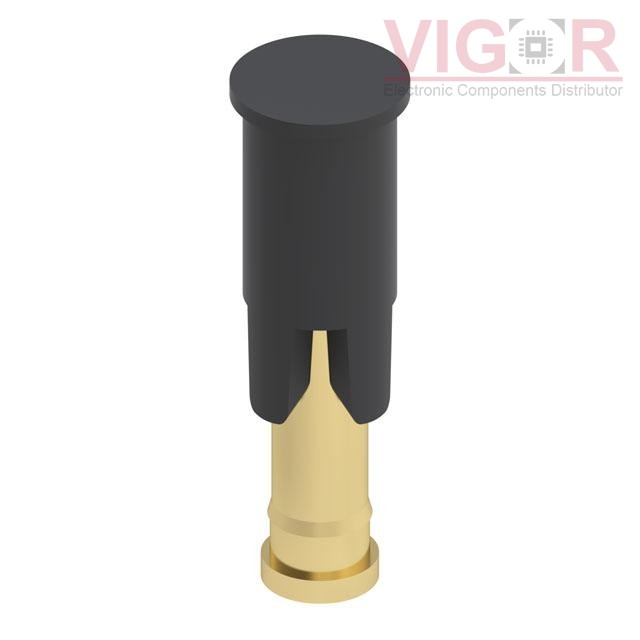

Image is for reference,
please contact us to get the real picture

Part No :

806-22-001-30-014191

Manufacturer
Mill-Max
Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
806-22-001-30-014191 PDF
Availability
1488 pieces
Unit Price
$1.14000

Current price of 806-22-001-30-014191 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

806-22-001-30-014191 Specifications
Type Description
Series:806
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.295" (7.49mm)
Recommended Working Height:0.267" (6.79mm)
Minimum Working Height:-
Pad Layout Dimension:Circular - 0.072" (1.83mm)
Operating Force - Initial:25gf
Operating Force - Mid Compression:60gf
Plunger Size:0.042" (1.07mm) Dia
Features:Pick and Place
Mating Cycles:1000000
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
