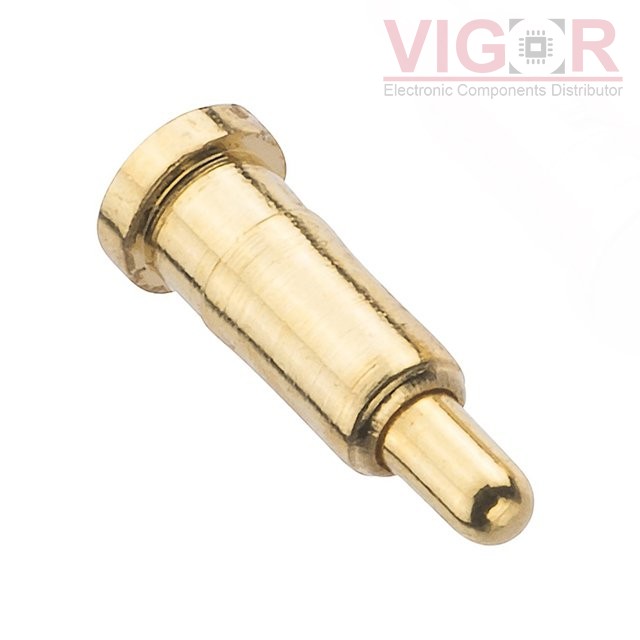

P70-1020045R

Image is for reference,
please contact us to get the real picture

Part No :: P70-1020045R

Manufacturer: Harwin

Description: CONTACT SPRING LOADED SMD GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: P70-1020045R PDF

Availability: 2790 pieces

Unit Price: ~~$0.86000~~

Current price of P70-1020045R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P70-1020045R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Surface Mount
Maximum Working Height:	0.185" (4.70mm)
Recommended Working Height:	0.177" (4.50mm)
Minimum Working Height:	0.165" (4.20mm)
Pad Layout Dimension:	Circular - 0.087" (2.20mm)
Operating Force - Initial:	-
Operating Force - Mid Compression:	119.31gf
Plunger Size:	0.035" (0.90mm) Dia
Features:	-
Mating Cycles:	10000
Contact Material:	Brass
Contact Finish:	Gold
Contact Finish Thickness:	16.0µin (0.41µm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
