2301843-2

2301843-2

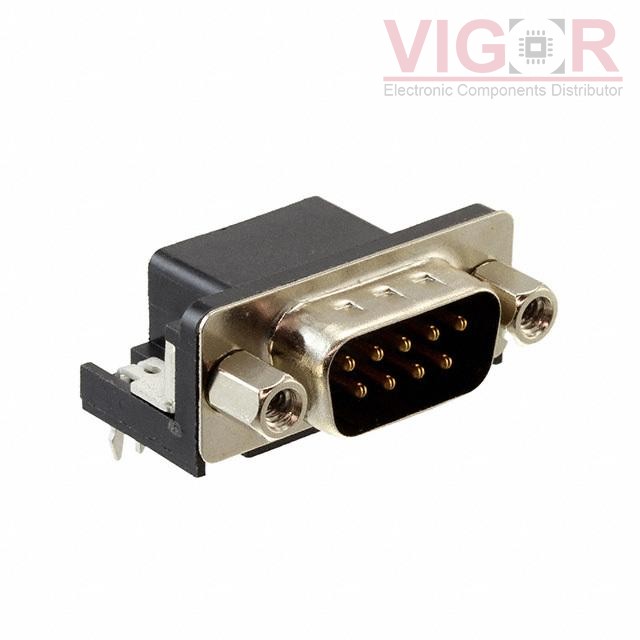

Image is for reference,
please contact us to get the real picture

Part No :

2301843-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB PLUG 9POS R/A SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
2301843-2 PDF
Availability
2312 pieces
Unit Price
$2.19000

Current price of 2301843-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2301843-2 Specifications
Type Description
Series:AMPLIMITE HD-20
Package:Tray
Part Status:Active
Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:9
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:1 (DE, E)
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A per Contact
Backset Spacing:0.411" (10.43mm)
Features:Board Lock, Grounding Indents
