XM3F-1520-132

XM3F-1520-132

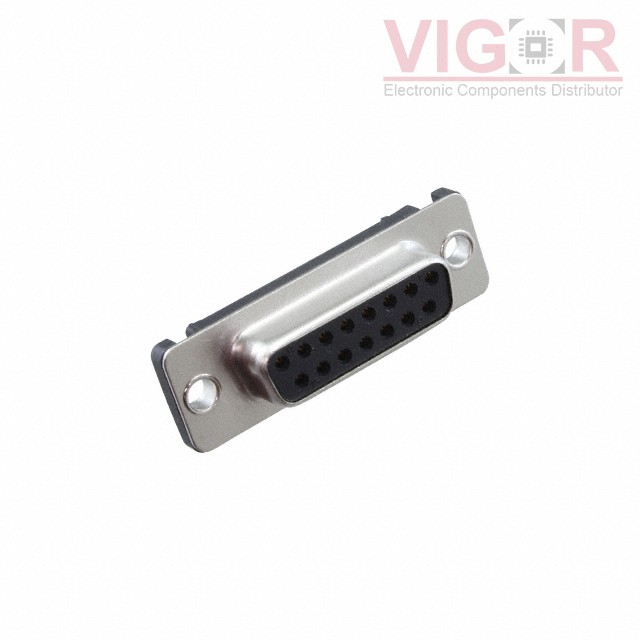

Image is for reference,
please contact us to get the real picture

Part No :

XM3F-1520-132

Manufacturer
Omron Electronics Components
Description
CONN D-SUB RCPT 15POS VERT SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
XM3F-1520-132 PDF
Availability
0 pieces
Unit Price
$13.60243

Current price of XM3F-1520-132 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XM3F-1520-132 Specifications
Type Description
Series:XM3F
Package:Tray
Part Status:Active
Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:15
Number of Rows:2
Mounting Type:Through Hole
Shell Size, Connector Layout:2 (DA, A)
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:16.0µin (0.41µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):5A
Backset Spacing:-
Features:Board Lock, Shielded
