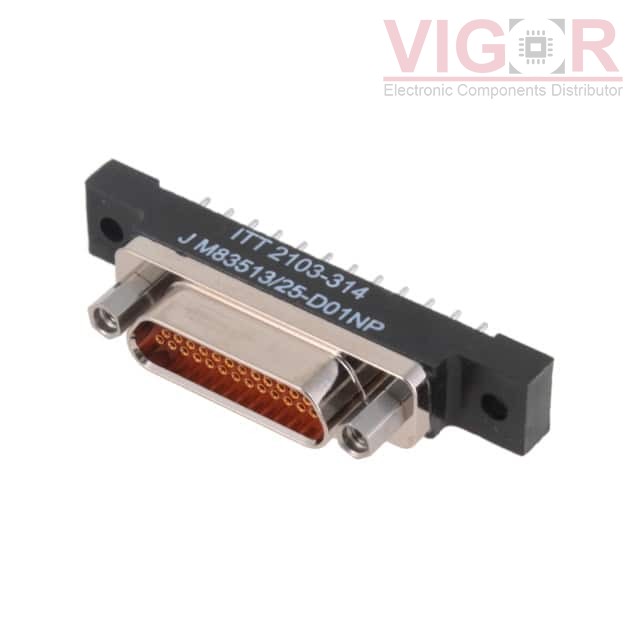

M83513/25-D01NP

M83513/25-D01NP

Image is for reference,
please contact us to get the real picture

Part No :

M83513/25-D01NP

Manufacturer
VEAM
Description
MICRO-D RECEPTACLE 25POS PCB, EL
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
M83513/25-D01NP PDF
Availability
50 pieces
Unit Price
$154.51000

Current price of M83513/25-D01NP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M83513/25-D01NP Specifications
Type Description
Series:Military, MIL-C-83513, M83513
Package:Bag
Part Status:Active
Connector Style:D-Type, Micro-D
Connector Type:Receptacle, Female Sockets
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole
Shell Size, Connector Layout:0.050 Pitch x 0.050 Row to Row
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (2-56)
Termination:Solder
Shell Material, Finish:Aluminum Alloy, Nickel Plated, Electroless
Contact Finish:Gold
Contact Finish Thickness:-
Ingress Protection:-
Material Flammability Rating:-
Current Rating (Amps):3A
Backset Spacing:-
Features:-
