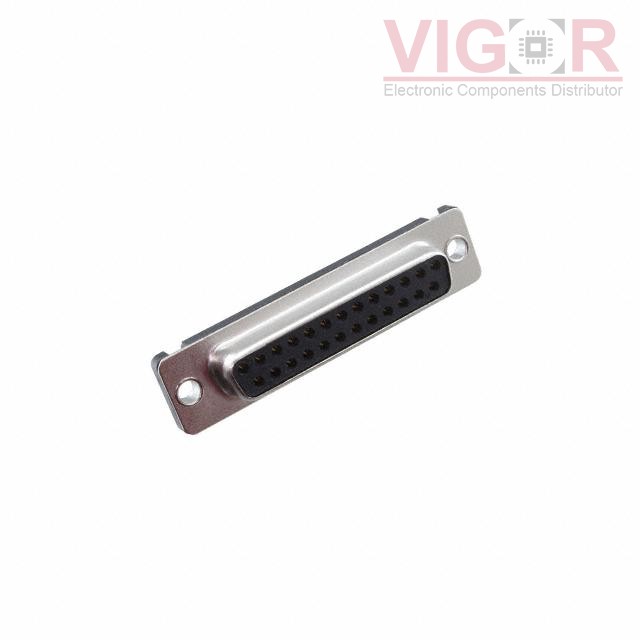

XM3F-2520-112

XM3F-2520-112

Image is for reference,
please contact us to get the real picture

Part No :

XM3F-2520-112

Manufacturer
Omron Electronics Components
Description
CONN D-SUB RCPT 25POS VERT SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
XM3F-2520-112 PDF
Availability
43 pieces
Unit Price
$11.85000

Current price of XM3F-2520-112 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XM3F-2520-112 Specifications
Type Description
Series:XM3F
Package:Tray
Part Status:Active
Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole
Shell Size, Connector Layout:3 (DB, B)
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (M2.6)
Termination:Solder
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:16.0µin (0.41µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):5A
Backset Spacing:-
Features:Board Lock, Shielded
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 173-E37-112-001

173-E37-112-001

CONN D-SUB PLUG 37POS R/A SLDR
HOT DD44M20W0S

DD44M20W0S

CONN D-SUB HD PLUG 44P SLDR CUP

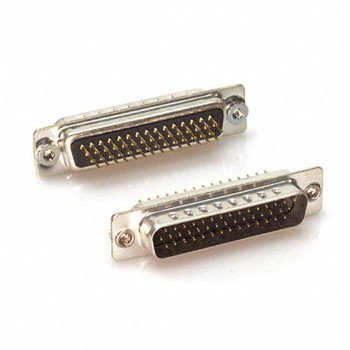

HOT 180-062-213R001
