09693009173

09693009173

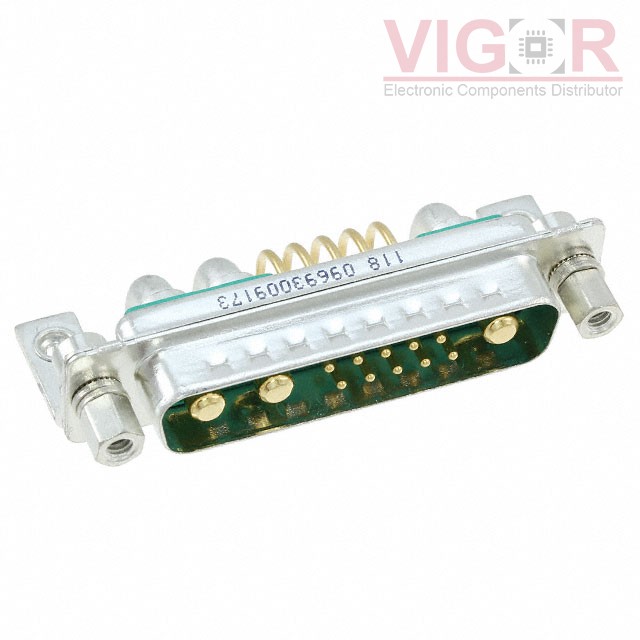

Image is for reference,
please contact us to get the real picture

Part No :

09693009173

Manufacturer
HARTING
Description
CONN D-SUB PLUG 13POS R/A SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
09693009173 PDF
Availability
20 pieces
Unit Price
$24.44000

Current price of 09693009173 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09693009173 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Connector Style:D-Sub, Combo
Connector Type:Plug, Male Pins
Number of Positions:13 (10 + 3 Power)
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:3 (DB, B) - 13C3, 13W3
Contact Type:Signal and Power
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Tin Plated
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Ingress Protection:-
Material Flammability Rating:-
Current Rating (Amps):-
Backset Spacing:0.406" (10.30mm)
Features:Board Lock, Grounding Indents, Mounting Brackets
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

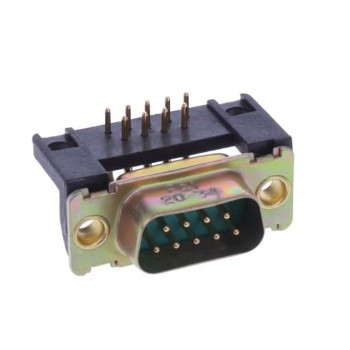

HOT DEM09P532N

DEM09P532N

DSUB DM SIGNAL STB 9 PIN

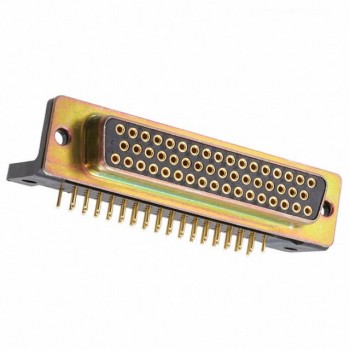

HOT M24308/23-29F

M24308/23-29F

CONN D-SUB RCPT 50POS R/A SOLDER

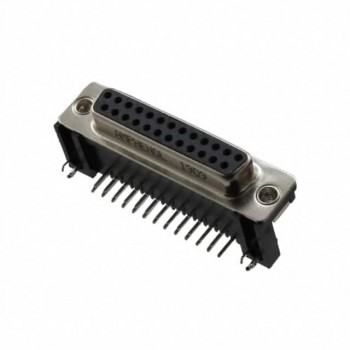

HOT L77SDB25S1ACH4R
