10070158-00119XLF

10070158-00119XLF

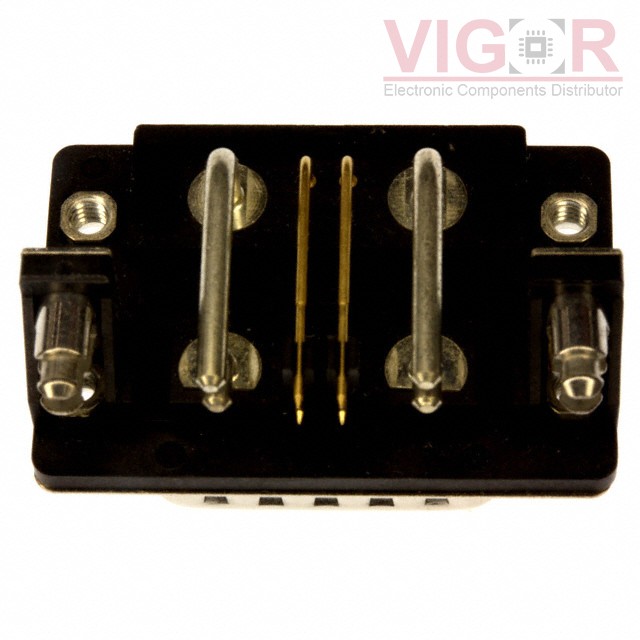

Image is for reference,
please contact us to get the real picture

Part No :

10070158-00119XLF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN D-SUB PLUG 4X2POS R/A SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
10070158-00119XLF PDF
Availability
0 pieces
Unit Price
$28.94880

Current price of 10070158-00119XLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10070158-00119XLF Specifications
Type Description
Series:MicroTCA™
Package:Box
Part Status:Active
Connector Style:D-Sub, Combo - Stacked
Connector Type:Plug, Male Pins
Number of Positions:4 (2 + 2 Power) x 2
Number of Rows:1,1
Mounting Type:Board Cutout, Through Hole, Right Angle
Shell Size, Connector Layout:2 (DA, A) - 4W2; 2 (DA, A) - 4W2
Contact Type:Signal and Power
Flange Feature:Housing/Shell (4-40)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:-
Ingress Protection:-
Material Flammability Rating:-
Current Rating (Amps):0.375A, 24A
Backset Spacing:0.201" (5.10mm)
Features:Board Lock, Grounding Indents, Mounting Brackets
