094-6236-0000

094-6236-0000

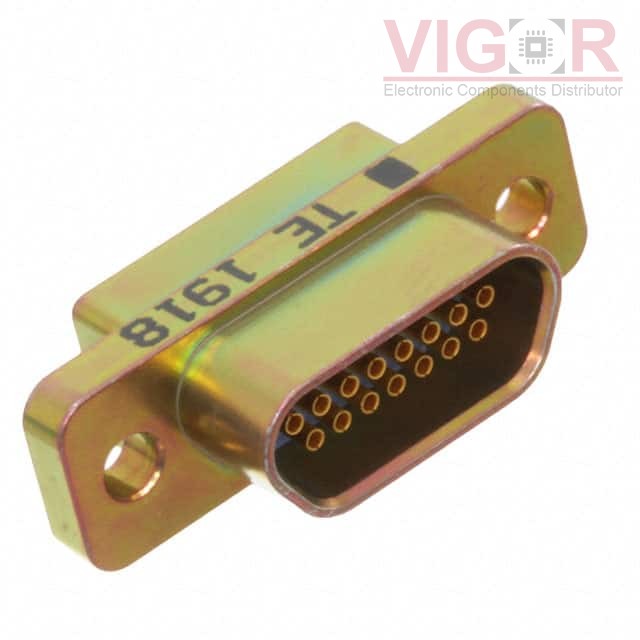

Image is for reference,
please contact us to get the real picture

Part No :

094-6236-0000

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
CONN MICRO-D RCPT 15POS SLDR CUP
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
094-6236-0000 PDF
Availability
12 pieces
Unit Price
$50.14000

Current price of 094-6236-0000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

094-6236-0000 Specifications
Type Description
Series:Military, MIL-DTL-83513, MICRODOT (MCKS)
Package:Bulk
Part Status:Active
Connector Style:D-Type, Micro-D
Connector Type:Receptacle, Female Sockets
Number of Positions:15
Number of Rows:2
Mounting Type:Free Hanging (In-Line)
Shell Size, Connector Layout:-
Contact Type:Signal
Flange Feature:Housing/Shell (Unthreaded)
Termination:Solder Cup
Shell Material, Finish:Metal, Yellow Chromate Plated Cadmium
Contact Finish:Gold
Contact Finish Thickness:50.0µin (1.27µm)
Ingress Protection:-
Material Flammability Rating:-
Current Rating (Amps):-
Backset Spacing:-
Features:Reverse Layout
