1658685-1

1658685-1

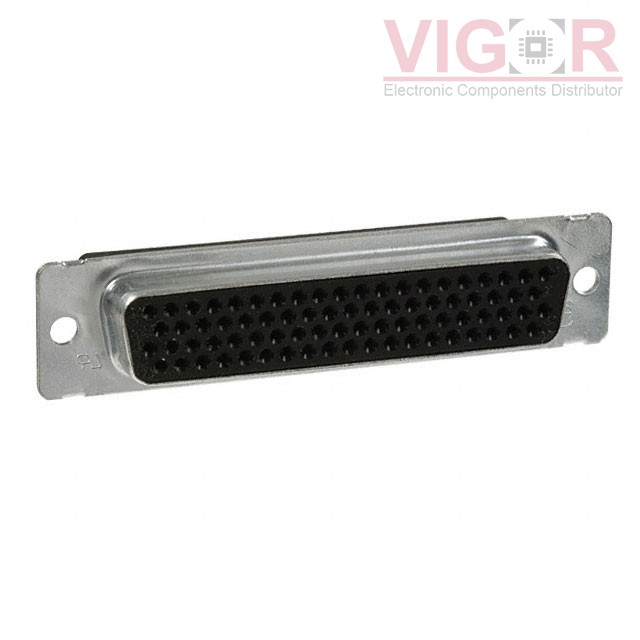

Image is for reference,
please contact us to get the real picture

Part No :

1658685-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN D-SUB HD HOUSING RCPT 78POS
Catalog
D-Sub, D-Shaped Connectors - Housings
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1658685-1 PDF
Availability
186 pieces
Unit Price
$11.72000

Current price of 1658685-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1658685-1 Specifications
Type Description
Series:AMPLIMITE HDP-22
Package:Bulk
Part Status:Active
Connector Style:D-Sub, High Density
Connector Type:Receptacle for Female Contacts
Number of Positions:78
Number of Rows:4
Shell Size, Connector Layout:5 (DD, D) High Density
Contact Type:Signal
Mounting Type:Free Hanging (In-Line)
Flange Feature:Housing/Shell (Unthreaded)
Features:-
Shell Material, Finish:Steel, Tin Plated
Shell Finish Thickness:200µin (5.08µm)
Ingress Protection:-
