5007972394

5007972394

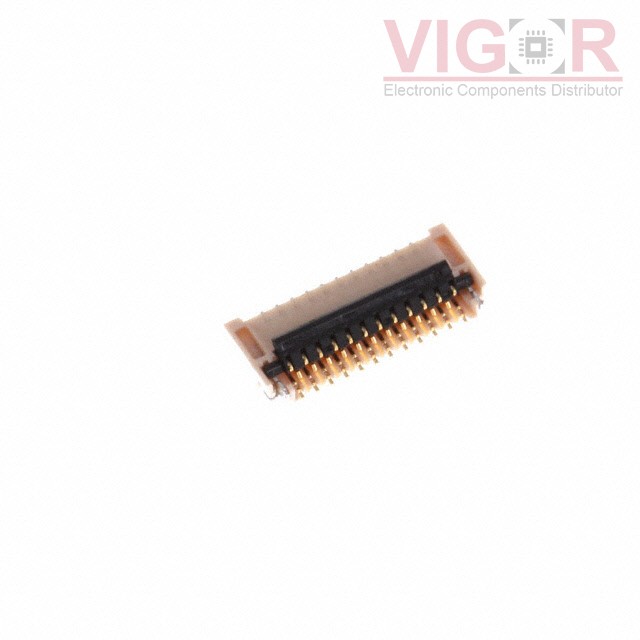

Image is for reference,
please contact us to get the real picture

Part No :

5007972394

Manufacturer
Woodhead - Molex
Description
CONN FPC BOTTOM 23POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
5007972394 PDF
Availability
127 pieces
Unit Price
$1.67000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 5007972394 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

5007972394 Specifications
Type Description
Series:Easy-On 500797
Package:Bulk
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:23
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.041" (1.05mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
