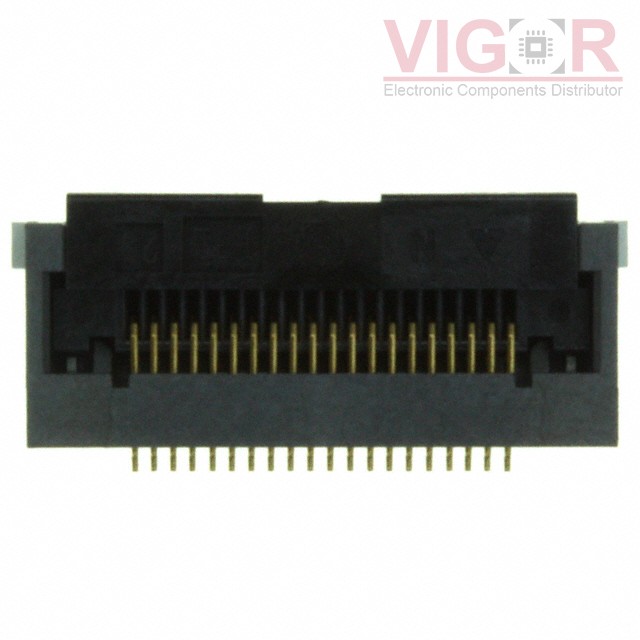

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of FH28E-20S-0.5SH(05) is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | FH28 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Flat Flex Type: | FFC, FPC |
Mounting Type: | Surface Mount, Right Angle |
Connector/Contact Type: | Contacts, Bottom |
Number of Positions: | 20 |
Pitch: | 0.020" (0.50mm) |
Termination: | Solder |
FFC, FCB Thickness: | 0.30mm |
Height Above Board: | 0.100" (2.54mm) |
Locking Feature: | Rotary Lock |
Cable End Type: | Tabbed |
Contact Material: | Phosphor Bronze |
Contact Finish: | Gold |
Housing Material: | Liquid Crystal Polymer (LCP), Halogen Free |
Actuator Material: | Liquid Crystal Polymer (LCP), Halogen Free |
Features: | Solder Retention, Zero Insertion Force (ZIF) |
Voltage Rating: | - |
Operating Temperature: | -40°C ~ 105°C |
Material Flammability Rating: | UL94 V-0 |
