687120182122

687120182122

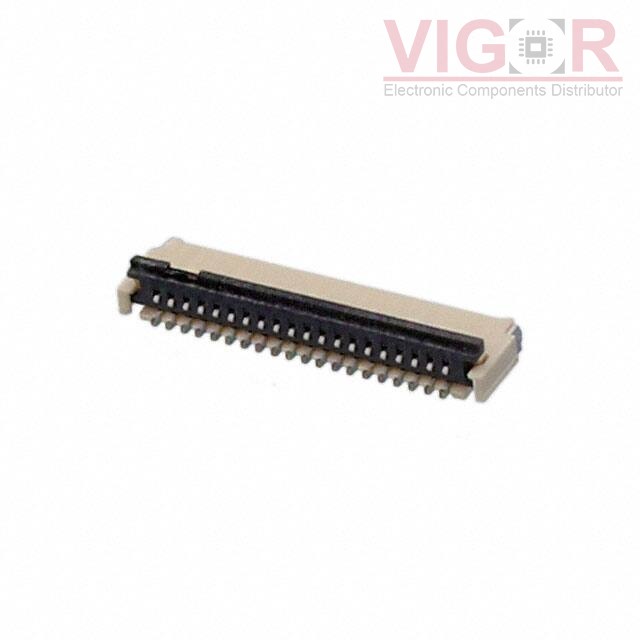

Image is for reference,
please contact us to get the real picture

Part No :

687120182122

Manufacturer
Würth Elektronik Midcom
Description
CONN FFC FPC 20POS 0.5MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
687120182122 PDF
Availability
216 pieces
Unit Price
$2.00000

Current price of 687120182122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

687120182122 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:20
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.31mm
Height Above Board:0.037" (0.95mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA9T), Nylon 9T
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
