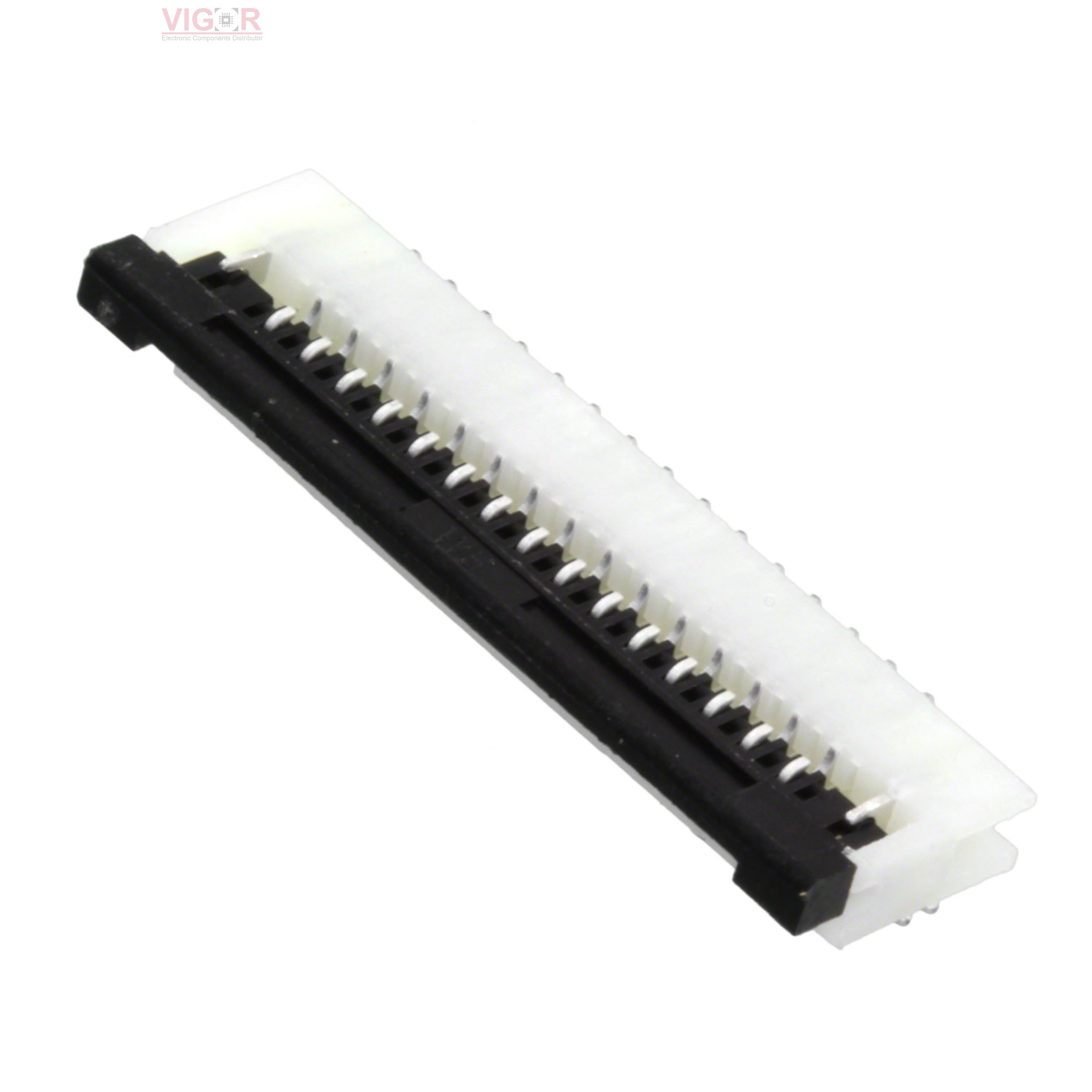

Image is for reference,
please contact us to get the real picture

Part No :

686115148922

Manufacturer
Würth Elektronik Midcom
Description
CONN 1MM HORZ BOTTOM SMD 15POS
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
686115148922 PDF
Availability
1927 pieces
Unit Price
$1.45000

Current price of 686115148922 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

686115148922 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:15
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.087" (2.20mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA6T), Nylon 6T
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:100V
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
