0512812694

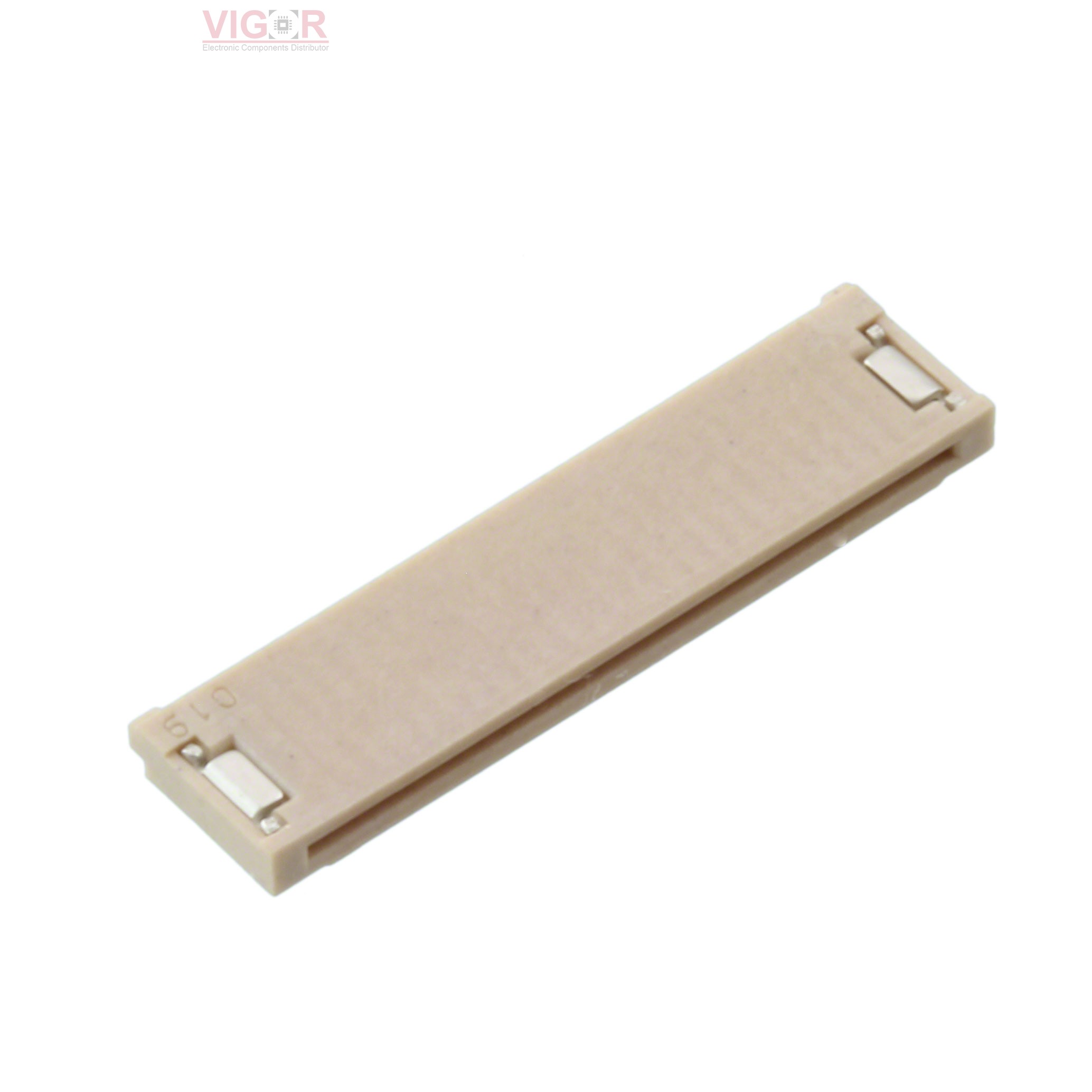

Image is for reference,
please contact us to get the real picture

Part No :: 0512812694

Manufacturer: Woodhead - Molex

Description: CONN FFC FPC 26POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 0512812694 PDF

Availability: 4112 pieces

Unit Price: ~~$1.38000~~

Current price of 0512812694 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0512812694 Specifications

Type	Description
Series:	Easy-On 51281
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	26
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.047" (1.20mm)
Locking Feature:	-
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	-
Features:	Solder Retention
Voltage Rating:	50V
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
