5034802600

5034802600

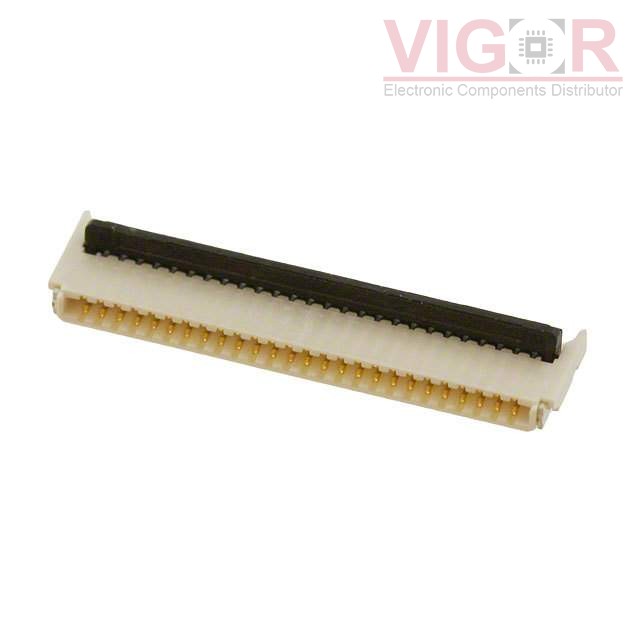

Image is for reference,
please contact us to get the real picture

Part No :

5034802600

Manufacturer
Woodhead - Molex
Description
CONN FFC FPC 26POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
5034802600 PDF
Availability
0 pieces
Unit Price
$1.94000

Current price of 5034802600 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5034802600 Specifications
Type Description
Series:BackFlip, Easy-On 503480 FHB1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:26
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Straight, Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
