FR02C023JA1-R5000

FR02C023JA1-R5000

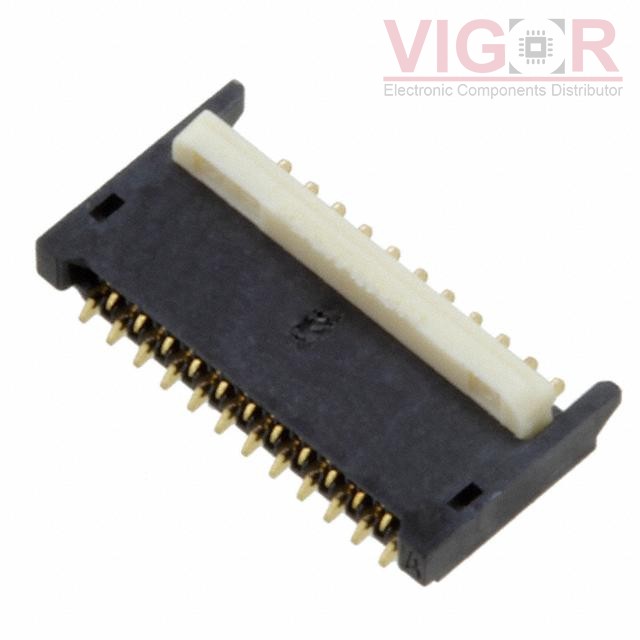

Image is for reference,
please contact us to get the real picture

Part No :

FR02C023JA1-R5000

Manufacturer
JAE Electronics
Description
CONN FPC 23POS 0.20MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
FR02C023JA1-R5000 PDF
Availability
0 pieces
Unit Price
$1.30000

Current price of FR02C023JA1-R5000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FR02C023JA1-R5000 Specifications
Type Description
Series:FR02
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:23
Pitch:0.008" (0.20mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.032" (0.81mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tabbed or Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Plastic
Actuator Material:Plastic
Features:Low Insertion Force (LIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:-
