FA5S022HP1

FA5S022HP1

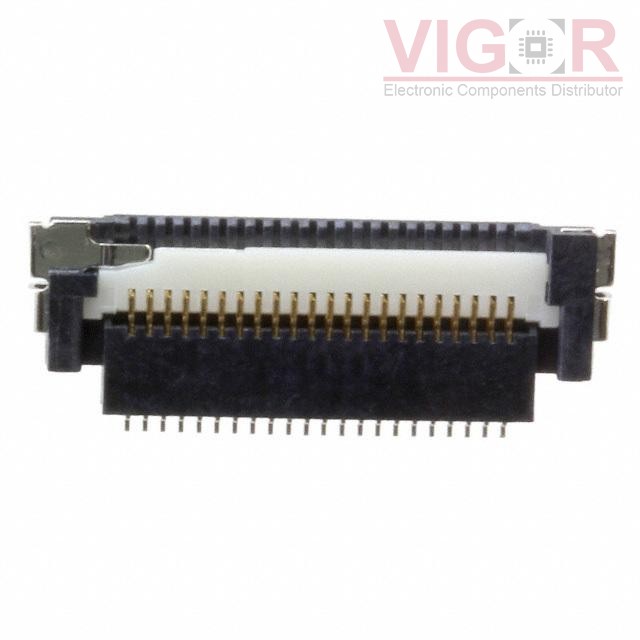

Image is for reference,
please contact us to get the real picture

Part No :

FA5S022HP1

Manufacturer
JAE Electronics
Description
CONN FPC BOTTOM 22POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
FA5S022HP1 PDF
Availability
0 pieces
Unit Price
$4.80000

Current price of FA5S022HP1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FA5S022HP1 Specifications
Type Description
Series:FA5
Package:Bulk
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:22
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.057" (1.45mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
