F305-1A7H1-11015-E100

F305-1A7H1-11015-E100

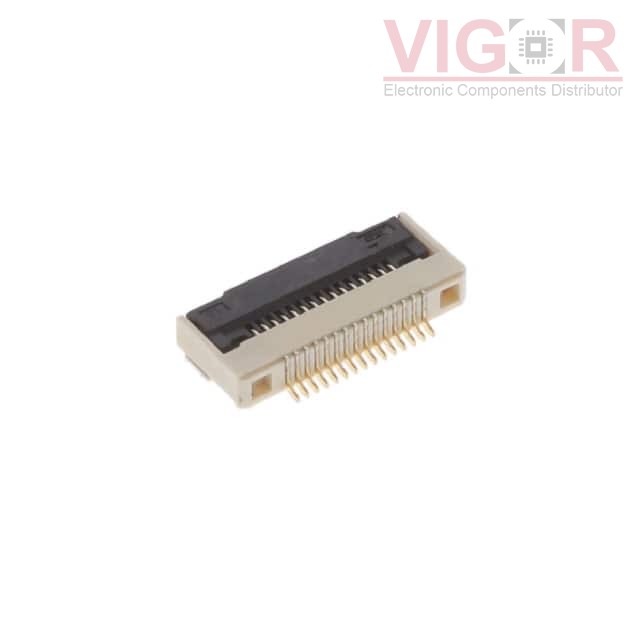

Image is for reference,
please contact us to get the real picture

Part No :

F305-1A7H1-11015-E100

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
FLEX CONNECTOR, 0.50MM PITCH, HE
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
F305-1A7H1-11015-E100 PDF
Availability
1988 pieces
Unit Price
$0.57000

Current price of F305-1A7H1-11015-E100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F305-1A7H1-11015-E100 Specifications
Type Description
Series:Aorora F305
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:15
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.33mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Notched
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA9T), Nylon 9T, Halogen Free
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
