5017863092

5017863092

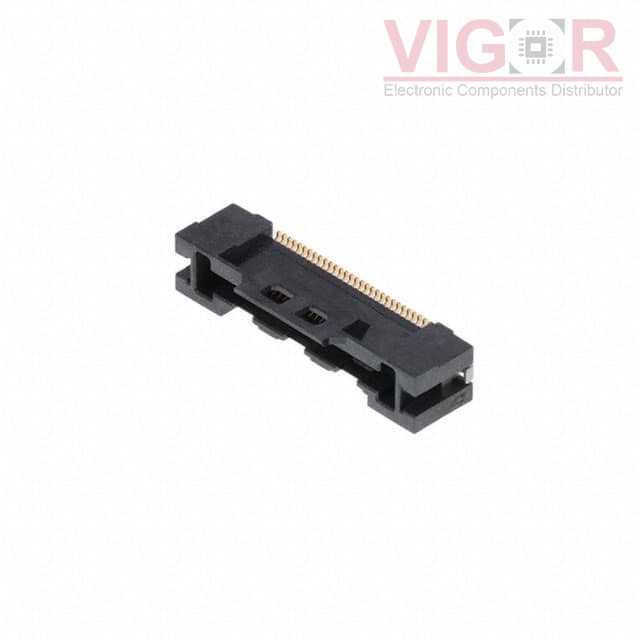

Image is for reference,
please contact us to get the real picture

Part No :

5017863092

Manufacturer
Woodhead - Molex
Description
CONN FFC VERT 30POS 0.50MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
5017863092 PDF
Availability
0 pieces
Unit Price
$2.27000

Current price of 5017863092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5017863092 Specifications
Type Description
Series:Easy-On 501786
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:30
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.234" (5.95mm)
Locking Feature:Slide Lock
Cable End Type:Notched
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:-
Features:Board Guide, Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
