5022311500

5022311500

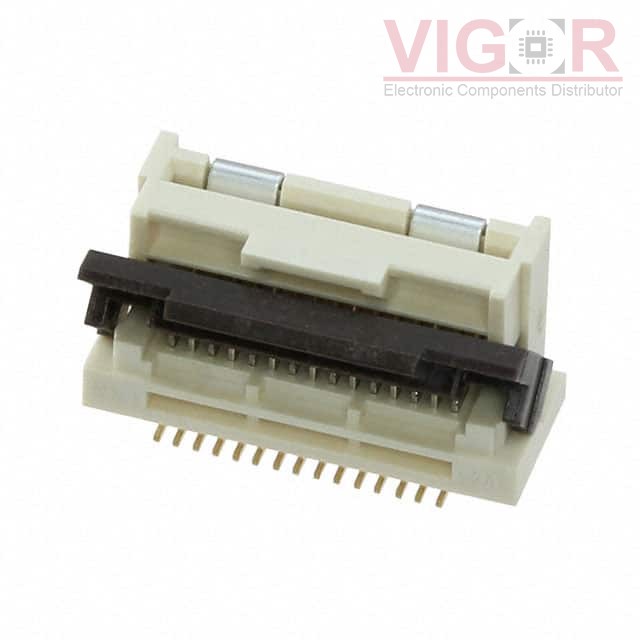

Image is for reference,
please contact us to get the real picture

Part No :

5022311500

Manufacturer
Woodhead - Molex
Description
CONN FFC VERT 15POS 0.50MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
5022311500 PDF
Availability
4076 pieces
Unit Price
$1.34000

Current price of 5022311500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022311500 Specifications
Type Description
Series:Easy-On 502231
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:15
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.238" (6.05mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA9T), Nylon 9T, Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
