TF46-60S-0.5SH(800)

TF46-60S-0.5SH(800)

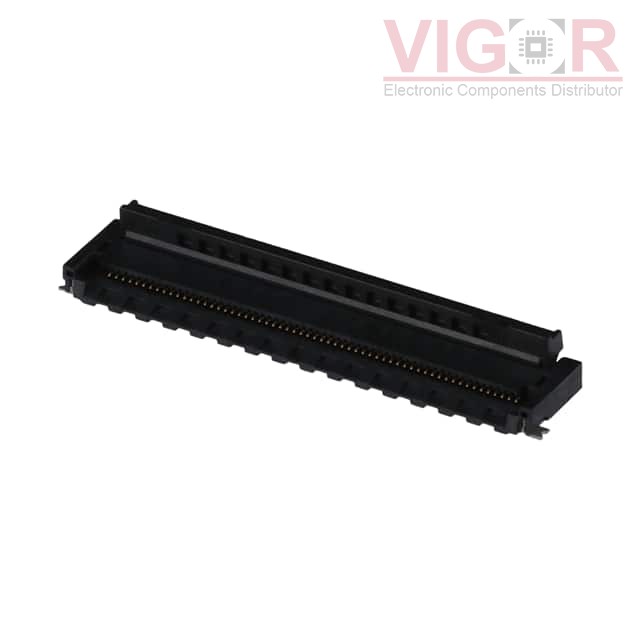

Image is for reference,
please contact us to get the real picture

Part No :

TF46-60S-0.5SH(800)

Manufacturer
Hirose
Description
CONN FFC/FPC 0.5MM SMD 60POS
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
TF46-60S-0.5SH(800) PDF
Availability
1360 pieces
Unit Price
$3.15000

Current price of TF46-60S-0.5SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TF46-60S-0.5SH(800) Specifications
Type Description
Series:TF46
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:60
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.087" (2.20mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tabbed
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
