ZF1-25-01-T-WT-TR

ZF1-25-01-T-WT-TR

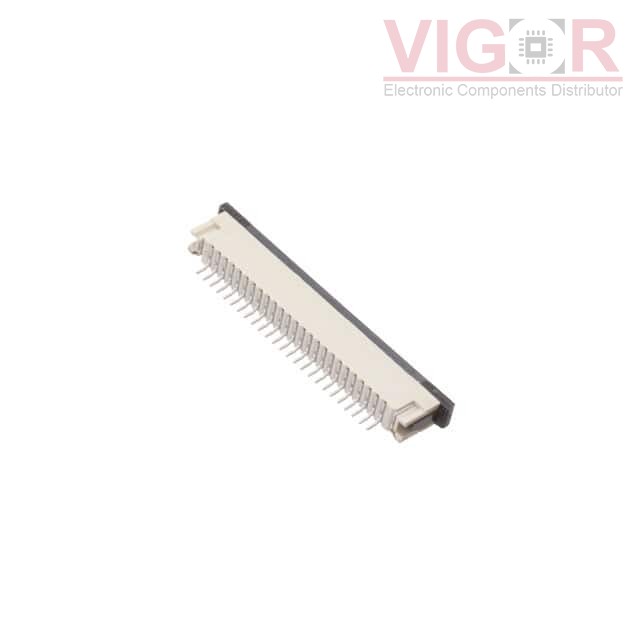

Image is for reference,
please contact us to get the real picture

Part No :

ZF1-25-01-T-WT-TR

Manufacturer
Samtec, Inc.
Description
ZERO INSERTION FORCE 1MM ASSEMBL
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
ZF1-25-01-T-WT-TR PDF
Availability
1234 pieces
Unit Price
$1.34000

Current price of ZF1-25-01-T-WT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZF1-25-01-T-WT-TR Specifications
Type Description
Series:ZF1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:25
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:-
Height Above Board:0.118" (3.00mm)
Locking Feature:Slide Lock
Cable End Type:-
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-2
