0525592033

0525592033

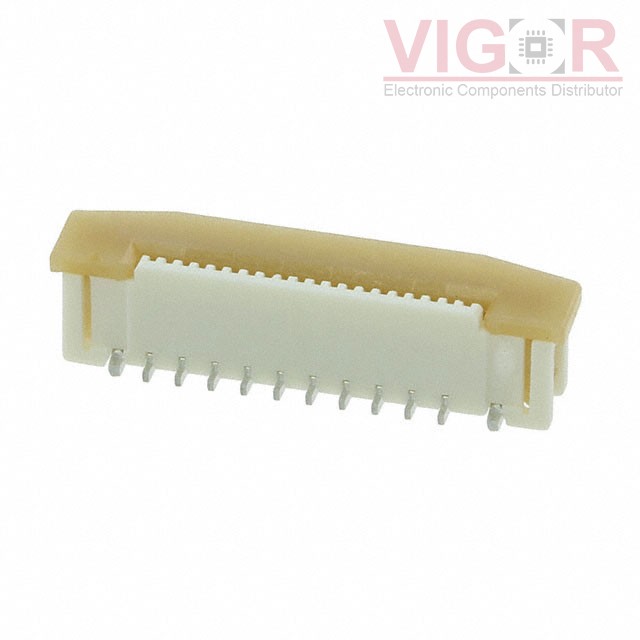

Image is for reference,
please contact us to get the real picture

Part No :

0525592033

Manufacturer
Woodhead - Molex
Description
CONN FFC VERT 20POS 0.50MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 26 - Aug 30 2025
DataSheet
0525592033 PDF
Availability
0 pieces
Unit Price
$2.21000

Current price of 0525592033 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0525592033 Specifications
Type Description
Series:Easy-On 52559
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:20
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.154" (3.90mm)
Locking Feature:Slide Lock
Cable End Type:Straight, Tapered
Contact Material:Copper Alloy
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
