1-84953-5

1-84953-5

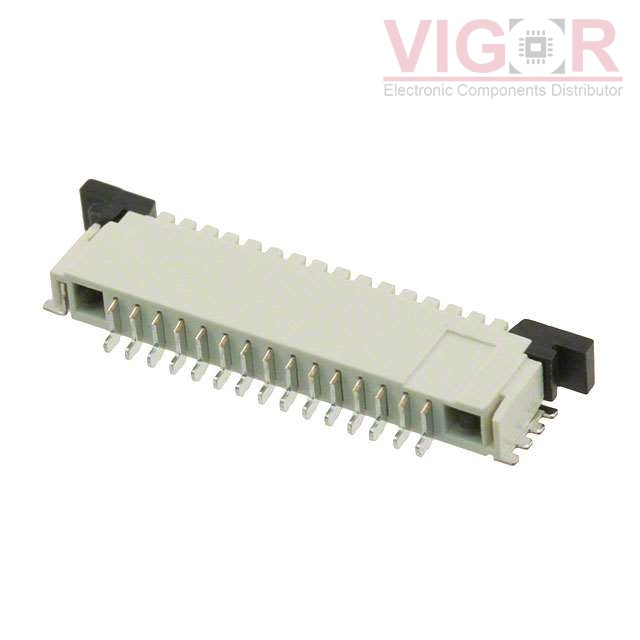

Image is for reference,
please contact us to get the real picture

Part No :

1-84953-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN FPC TOP 15POS 1.00MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
1-84953-5 PDF
Availability
6752 pieces
Unit Price
$0.95000

Current price of 1-84953-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-84953-5 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:15
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.101" (2.56mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:200V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
