26FLZ-SM2-TB(LF)(SN)

26FLZ-SM2-TB(LF)(SN)

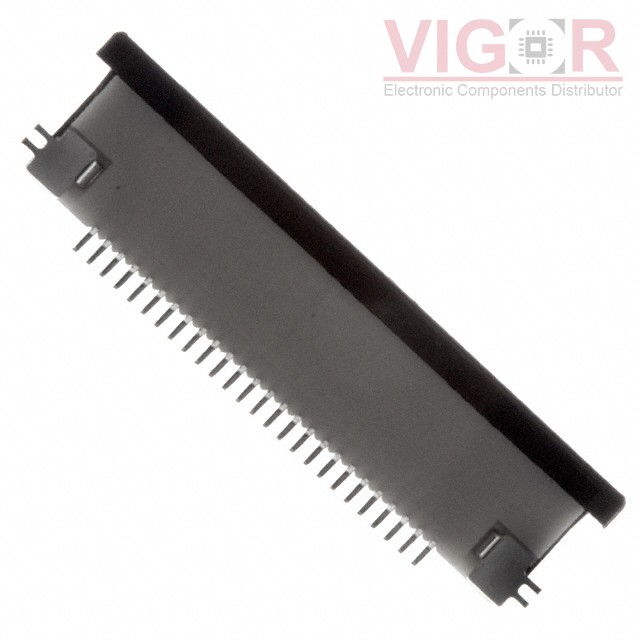

Image is for reference,
please contact us to get the real picture

Part No :

26FLZ-SM2-TB(LF)(SN)

Manufacturer
JST
Description
CONN FFC TOP 26POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
26FLZ-SM2-TB(LF)(SN) PDF
Availability
0 pieces
Unit Price
$0.77836

Current price of 26FLZ-SM2-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

26FLZ-SM2-TB(LF)(SN) Specifications
Type Description
Series:FLZ
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:26
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA6T), Nylon 6T
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
