2-84534-2

2-84534-2

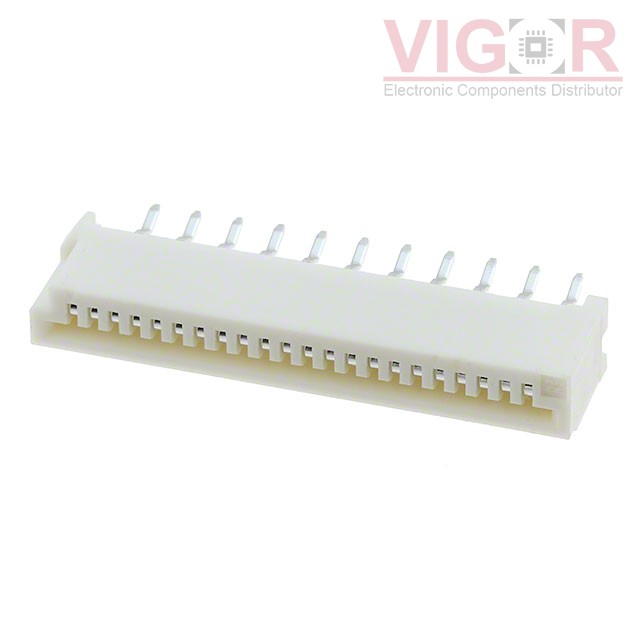

Image is for reference,
please contact us to get the real picture

Part No :

2-84534-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN FFC VERT 22POS 1.25MM PCB
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
2-84534-2 PDF
Availability
0 pieces
Unit Price
$0.92000

Current price of 2-84534-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2-84534-2 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:22
Pitch:0.049" (1.25mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.30mm
Height Above Board:0.307" (7.80mm)
Locking Feature:-
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material:-
Features:-
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:-
