046293621005829+

046293621005829+

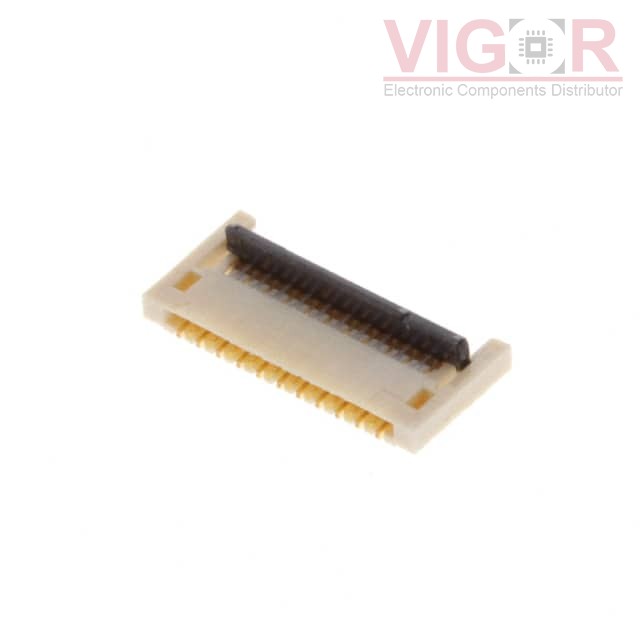

Image is for reference,
please contact us to get the real picture

Part No :

046293621005829+

Manufacturer
KYOCERA Corporation
Description
0.3MM PITCH - 21 POS - RT ANGLE
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
046293621005829+ PDF
Availability
3454 pieces
Unit Price
$1.20000

Current price of 046293621005829+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

046293621005829+ Specifications
Type Description
Series:6293, Kyocera
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:21
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.15mm
Height Above Board:0.033" (0.84mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Plastic
Actuator Material:-
Features:Low Insertion Force (LIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:-
