SFW22R-3STE1LF

SFW22R-3STE1LF

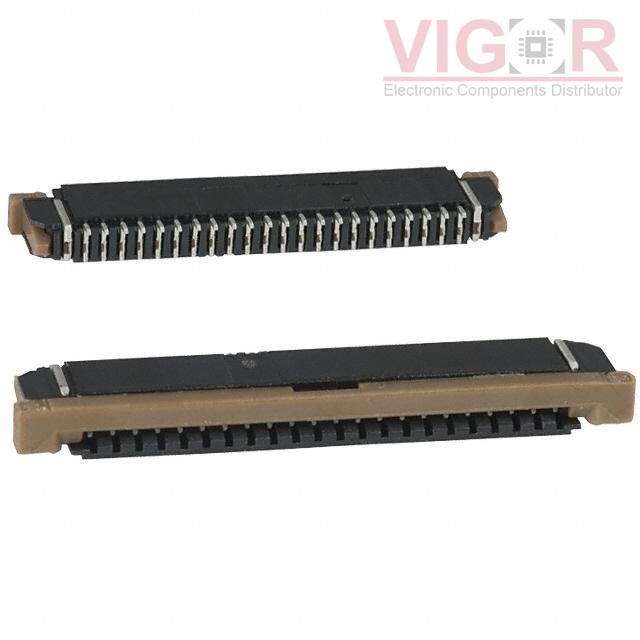

Image is for reference,
please contact us to get the real picture

Part No :

SFW22R-3STE1LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN FFC BOTTOM 22POS 1.00MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SFW22R-3STE1LF PDF
Availability
0 pieces
Unit Price
$0.30630

Current price of SFW22R-3STE1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFW22R-3STE1LF Specifications
Type Description
Series:SFW-R
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:22
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:100V
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
